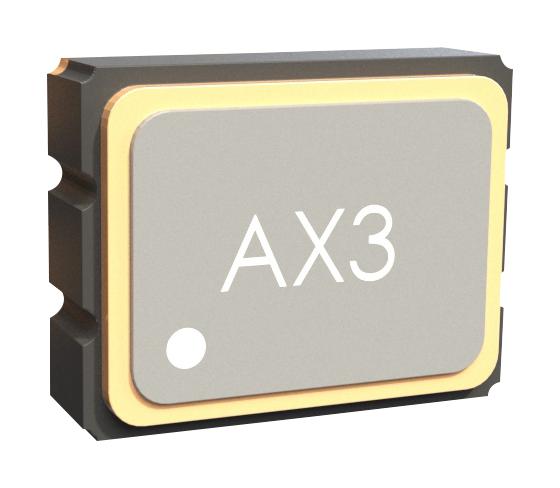

ABRACON AX3DAF11228800 Oscillator
The ClearClock Ultra-Low Jitter and Power-Optimized Oscillator is a compact 3.2 x 2.5 mm device designed for high-performance timing applications. With extremely low RMS jitter below 80 femtoseconds at 156.25 MHz, it ensures exceptional timing stability. Its versatile output formats include LVPECL, LVDS, and HCSL, and it supports frequencies between 100 MHz and 200 MHz. The oscillator features low power consumption, operating at various supply voltages, and offers stability over industrial temperature ranges from -40°C to +85°C, making it ideal for test, measurement, and high-speed networking equipment.
ABRACON AX3DAF11228800 Oscillator Specifications:
- Frequency Range: 100 - 200 MHz
- Output Formats: LVPECL, LVDS, HCSL
- Supply Voltage Options: 1.8V, 2.5V, 3.3V
- Power Consumption: Typical 16mA @ 156.25MHz
- Jitter: <80 fs RMS @ 156.25MHz
- Frequency Stability: 425ppm over -40°C to +85°C
- Temperature Range: -40°C to +85°C
- Form Factor: 3.2 x 2.5 x 1.0 mm
- ESD Sensitivity: RoHS/RoHS II compliant, MSL=1
- Package: Surface-mount, industry standard footprint
- Application Areas: Test & measurement, high-speed data centers, communication systems
- Reflow Profile: Preheat to peak 260°C, controlled ramp rates, suitable for reflow soldering.
Buy the Buy Abracon Oscillator Part Number AX3DAF11228800 Online
Discover the industry’s leading ultra-low jitter oscillator, perfect for high-frequency applications, with guaranteed stability over wide temperature ranges. This compact, power-efficient device offers multiple output formats including LVPECL, LVDS, and HCSL, supporting frequencies from 100 MHz to 200 MHz. Its small 3.2 x 2.5 mm footprint and low power draw of 16mA make it ideal for aerospace, communications, and measurement systems. Purchase online now to ensure your project benefits from top-tier timing precision and reliability.
Order your Abracon Series AX3DAF11228800 ultra-low jitter oscillator today and enhance your high-speed timing accuracy with stable, reliable performance.
Frequently Asked Questions
Where can I buy ABRACON AX3DAF11228800?
You can click on the BUY or RFQ button to purchase AX3DAF11228800 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3DAF11228800?
You can download the AX3DAF11228800 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3DAF11228800?
ABRACON
