ABRACON AX3PAF11142850 Crystal Oscillator
The ClearClock ultra-low jitter crystal oscillator offers exceptional stability with RMS jitter below 80fs at 156.25MHz. Available in standard frequencies from 100MHz to 200MHz, it features industry-standard sizes of 3.2 x 2.5 mm with low power consumption of 16mA at 156.25MHz. Designed for high-performance applications like test & measurement, optical Ethernet, and data centers, its stability over -40 to +85°C and multiple differential output formats such as LVPECL, LVDS, and HCSL make it ideal for networking and RF systems. Compliance with RoHS and MSL=1 ensures quality and reliability.
ABRACON AX3PAF11142850 Crystal Oscillator Specifications:
- Frequency Range: 100 MHz to 200 MHz
- Jitter: < 80 fs RMS (@ 156.25 MHz), typical 50 fs
- Supply Voltage Options: 3.3V, 2.5V, 1.8V
- Size: 3.2 x 2.5 x 1.0 mm
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ±425 ppm over -40°C to +85°C
- Aging: ±15 ppm over 20 years
- Outputs: LVPECL, LVDS, HCSL
- Power Consumption: 16mA @ 156.25 MHz, 3.3V
- RoHS and RoHS II Compliant, MSL=1
- Packaging: Bulk or Tape & Reel options
- Rise/Fall Time: 300-500 ps
- Duty Cycle: 45-55%
- Output Voltage: LVPECL (Voh: 1.4-1.6V, Vol: 0.66-0.74V), HCSL, LVDS
- Start-up Time: < 2.5 ms

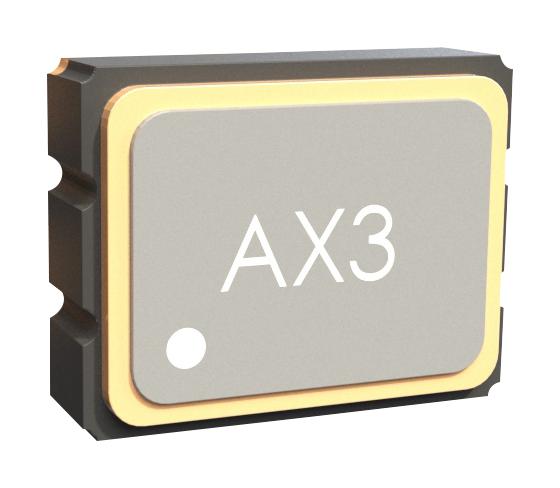

Buy the Buy Abracon Crystal Oscillator Part Number AX3PAF11142850 Online
Get your Abracon crystal oscillator, part number AX3PAF11142850, online today. Featuring ultra-low RMS jitter below 80fs, it provides exceptional stability over -40°C to +85°C. Its industry-standard 3.2 x 2.5 mm footprint, multiple differential output formats like LVPECL, LVDS, and HCSL, and low power consumption make it ideal for test & measurement, Ethernet, RF systems, and data centers. With RoHS compliance and MSL=1, this oscillator guarantees high reliability and performance for demanding applications. Purchase now to enhance your system’s timing accuracy.
Order your Abracon SeriesAX3PAF11142850 crystal oscillator today and ensure your high-performance projects benefit from ultra-low jitter and reliable stability.
Frequently Asked Questions
Where can I buy ABRACON AX3PAF11142850?
You can click on the BUY or RFQ button to purchase AX3PAF11142850 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3PAF11142850?
You can download the AX3PAF11142850 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3PAF11142850?
ABRACON
