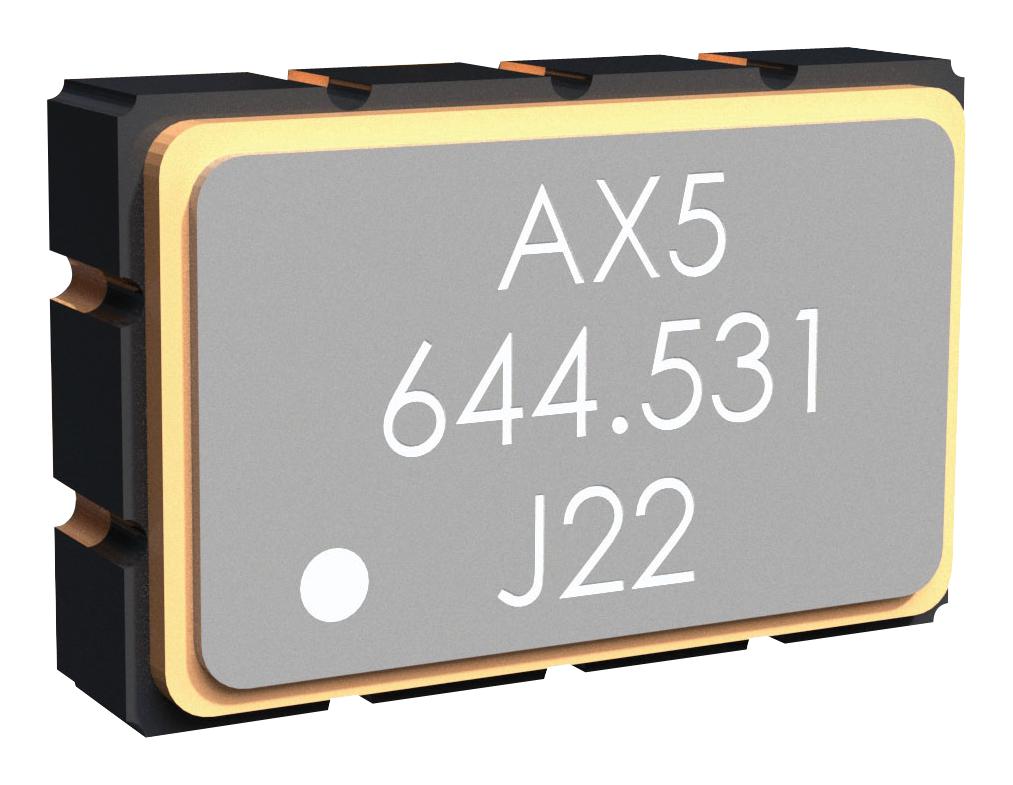

ABRACON AX5DBF13000000C High-Precision Crystal Oscillator
The product is a high-precision, ultra-low jitter crystal oscillator designed for networking, data centers, and RF systems. It features RMS jitter as low as 125 femtoseconds, power consumption of approximately 60mA in LVDS mode, and stability of 420 ppm over -40°C to +85°C. The compact footprint measures 5.0 x 3.2 mm with a height of 1.4 mm, and it supports frequencies from 50 MHz to 2100 MHz. Factory programmable options accommodate various output formats including LVPECL, LVDS, HCSL, and CML, suitable for demanding high-speed applications.
ABRACON AX5DBF13000000C High-Precision Crystal Oscillator Specifications:
- Frequency Range: 50 MHz to 2100 MHz
- Jitter: RMS 125 fs (typ), max 200 fs at >250 MHz
- Power Consumption: 60 mA (typ) in LVDS mode
- Stability: 420 ppm over -40°C to +85°C
- Supply Voltage: 3.3V, 2.5V, 1.8V
- Package Size: 5.0 x 3.2 mm x 1.4 mm
- Operating Temperature: -40°C to +85°C
- Outputs: LVPECL, LVDS, HCSL, CML
- RoHS and RoHS II compliant, MSL=1
- Factory programmable frequency options, support for multiple output formats.
Buy the Buy Abracon Crystal Oscillator Part Number AX5DBF13000000C Online
Order the Abracon AX5DBF13000000C crystal oscillator online today. Featuring ultra-low jitter of 125 femtoseconds, this compact device supports frequencies from 50 MHz to 2100 MHz. It offers reliable stability of 420 ppm over -40°C to +85°C, includes multiple differential output formats such as LVPECL, LVDS, HCSL, and CML, and consumes only 60mA in LVDS mode. Its small footprint of 5.0 x 3.2 mm, RoHS compliance, and factory programmability make it ideal for high-speed networking, RF systems, and data centers demanding precise timing solutions.
Get Abracon AX5DBF13000000C today—built for ultra-low jitter, high stability, and power efficiency in demanding network and data center timing applications.
Frequently Asked Questions
Where can I buy ABRACON AX5DBF13000000C?
You can click on the BUY or RFQ button to purchase AX5DBF13000000C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX5DBF13000000C?
You can download the AX5DBF13000000C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX5DBF13000000C?
ABRACON
