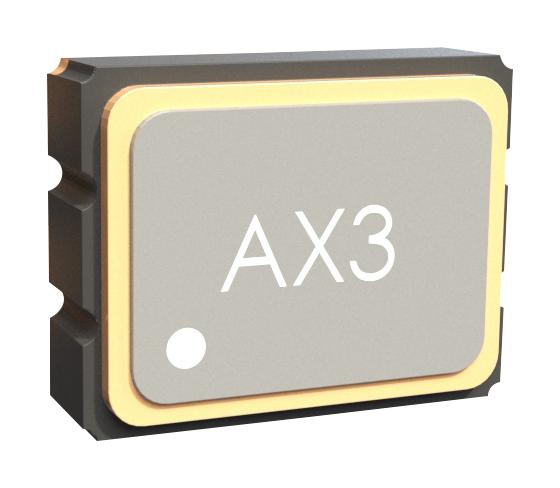

ABRACON AX3PBF11000000 Crystal Oscillator
The ClearClock ultra-low jitter crystal oscillator offers industry-standard frequencies suitable for test & measurement, networking, RF systems, and data centers. It features exceptionally low RMS jitter below 80 fs, comprehensive stability over -40 to +85°C, and multiple output formats including LVPECL, LVDS, and HCSL. Its compact 3.2 x 2.5 mm package ensures easy integration in high-performance applications. Power consumption is minimized at 16 mA at 156.25 MHz, making it ideal for power-sensitive environments. The oscillator complies with RoHS standards and withstands reflow soldering with recommended profiles.
ABRACON AX3PBF11000000 Crystal Oscillator Specifications:
- Frequency Range: 100 to 200 MHz
- Output Types: LVPECL, LVDS, HCSL
- Supply Voltage: 1.8V, 2.5V, 3.3V options
- Power Consumption: 16 mA at 156.25 MHz (typical)
- Jitter: <80 fs RMS (typ, @ 156.25MHz), 75-150 fs measured in tests
- Stability: ±425 ppm over -40°C to +85°C
- Package Size: 3.2 x 2.5 x 1.0 mm
- RoHS Compliant, MSL=1
- Reflow Profile: Preheat 150°C-200°C, Peak 260°C+5°C, 60-150 sec reflow
- Operating Temp: -40°C to +85°C
- Storage Temp: -55°C to +150°C
- Dimension Tolerance: ±0.004 inches
- Application Environment: Test & measurement, networking, RF, data centers
Buy the Buy Abracon Crystal Oscillator Part Number AX3PBF11000000 Online
Enhance your high-speed electronic systems with the Abracon crystal oscillator. Its ultra-low jitter below 80 femtoseconds, wide frequency range, and multiple output formats ensure optimal performance across communication, data networking, and RF applications. The compact 3.2 by 2.5 millimeter footprint allows easy integration into space-constrained designs. Consuming only 16 milliamps at 156.25 MHz, it offers excellent power efficiency. Certified RoHS and suitable for reflow soldering, this oscillator provides stability over -40°C to +85°C, making it ideal for demanding industrial, commercial, and measurement environments. Order online today!
Buy Abracon AX3PBF11000000 crystal oscillator now and experience unmatched reliability, ultra-low jitter, and power efficiency for high-performance applications.
Frequently Asked Questions
Where can I buy ABRACON AX3PBF11000000?
You can click on the BUY or RFQ button to purchase AX3PBF11000000 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3PBF11000000?
You can download the AX3PBF11000000 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3PBF11000000?
ABRACON
