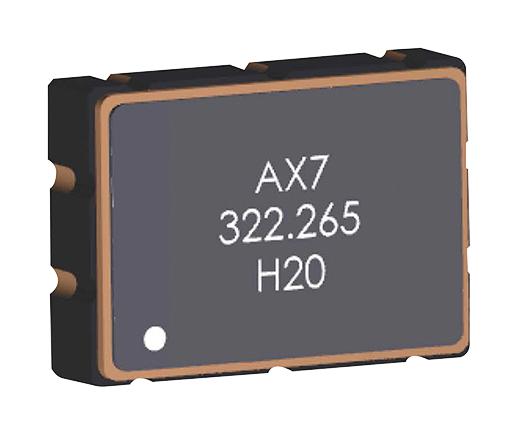

ABRACON AX7DAF31000000C Oscillator Module
The Power Optimized 0.12 picosecond XO operates within industry standard 5x7mm footprint, supporting frequencies from 50 to 2100MHz. It offers low power consumption, excellent phase noise, and jitter performance, making it ideal for networking, RF systems, and high-speed communication applications. The device features various output options, including LVPECL, LVDS, and HCSL, with stability over temperature and long-term aging for reliable signal integrity. RoHS compliance and MSL 1 rating ensure industry-standard environmental and handling requirements are met. It supports wide temperature ranges, making it suitable for cloud, server, and measurement equipment.
ABRACON AX7DAF31000000C Oscillator Module Specifications:
- Footprint: 5x7mm industry standard
- Dimensions: 7.0x5.0x1.8 mm
- Frequency Range: 50 to 2100MHz
- Power Supply Voltage: 1.8V or 3.3V options
- Current Consumption: Up to 70mA
- Jitter: 0.125ps typical at 150fs max near 200MHz
- Stability: ±50ppm over -20°C to 70°C, ±25ppm over -40°C to 85°C
- Frequency Stability over OTR: options D, E, F, G
- Output Types: LVPECL, LVDS, HCSL, CML
- ESD Sensitivity: ESD Sensitive
- RoHS/RoHS II Compliant
- MSL Level: 1
- Supported Temperature Range: -40°C to 85°C
- Test Conditions: Reflow profile includes preheat at 150-200°C, peak at 260°C for 20-40 sec
Buy the ClearClock 31000000C – Reliable Oscillator for Industrial Applications
Enhance your electronic projects with the Power Optimized Oscillator supporting up to 2100MHz. Its compact 5x7mm size, low power consumption, and excellent stability make it perfect for networking, RF systems, and data centers. Easy to integrate, RoHS compliant, and rated MSL 1 for safe handling. Whether for high-speed communications or measurement devices, this oscillator ensures precise timing, minimal jitter, and reliable long-term performance. Order online now to boost your system’s accuracy and stability today.
Buy ClearClock 31000000C now and experience unmatched low jitter and high frequency stability in your industrial communication systems.
Frequently Asked Questions
Where can I buy ABRACON AX7DAF31000000C?
You can click on the BUY or RFQ button to purchase AX7DAF31000000C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX7DAF31000000C?
You can download the AX7DAF31000000C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX7DAF31000000C?
ABRACON
