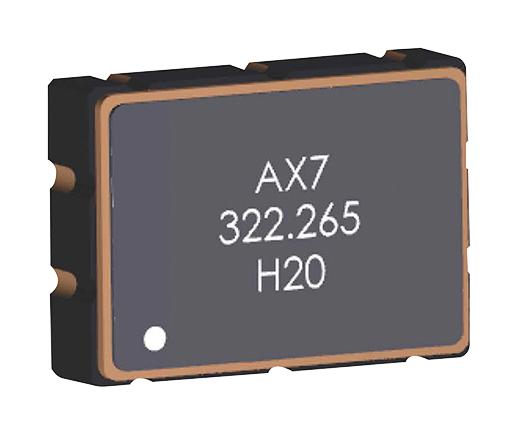

ABRACON AX7DBF31000000C Crystal Oscillator
The Power Optimized Crystal Oscillator offers 0.12ps of jitter with a 5x7mm footprint, supporting frequency ranges from 50 to 2100MHz. Designed for high-performance networking, RF systems, base stations, and test equipment, it features excellent spurious suppression, low power consumption, and stability over -40°C to 85°C operating temperature. Compatible with various output types like LVPECL, LVDS, HCSL, and CML, it ensures precise timing for industrial and communication applications, making it ideal for cloud, server, and fiber channel systems.
ABRACON AX7DBF31000000C Crystal Oscillator Specifications:
- Footprint: 5x7mm
- Dimensions: 7.0x5.0x1.8 mm
- Frequency Range: 50 to 2100MHz
- Jitter: 0.12ps typical
- Power Supply Voltage: 3.3V (with options for 1.8V and 2.5V)
- Current Consumption: up to 70mA
- Temperature Range: -40°C to 85°C, -20°C to 70°C (depending on option)
- Frequency Stability: ±25ppm to ±50ppm over temperature
- Supported Outputs: LVPECL, LVDS, HCSL, CML
- RoHS Compliant, MSL 1, ESD Sensitive
- Reflow Soldering Profile: Preheat 150–200°C, Peak 260°C
- Packaging: Tape & Reel or Cut Tape
- Application: Networking, RF systems, test & measurement, cloud and storage systems
Buy the ClearClock Power Optimized 0.12ps – Reliable Oscillator for Industrial Applications
Purchase the ClearClock Power Optimized Crystal Oscillator online today and experience high performance with 0.12ps jitter, supporting frequencies up to 2100MHz. Its compact 5x7mm footprint ensures versatile integration into networking, RF systems, and industrial applications. Designed for low power consumption and stability over a wide temperature range, this oscillator guarantees reliable timing essential for cloud, server, and fiber data systems. Order now for fast delivery and enhance your project’s precision and efficiency with a trusted oscillator solution.
Get ClearClock Power Optimized 0.12ps oscillator today—built for precision and long-lasting durability in industrial and communication systems.
Frequently Asked Questions
Where can I buy ABRACON AX7DBF31000000C?
You can click on the BUY or RFQ button to purchase AX7DBF31000000C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX7DBF31000000C?
You can download the AX7DBF31000000C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX7DBF31000000C?
ABRACON
