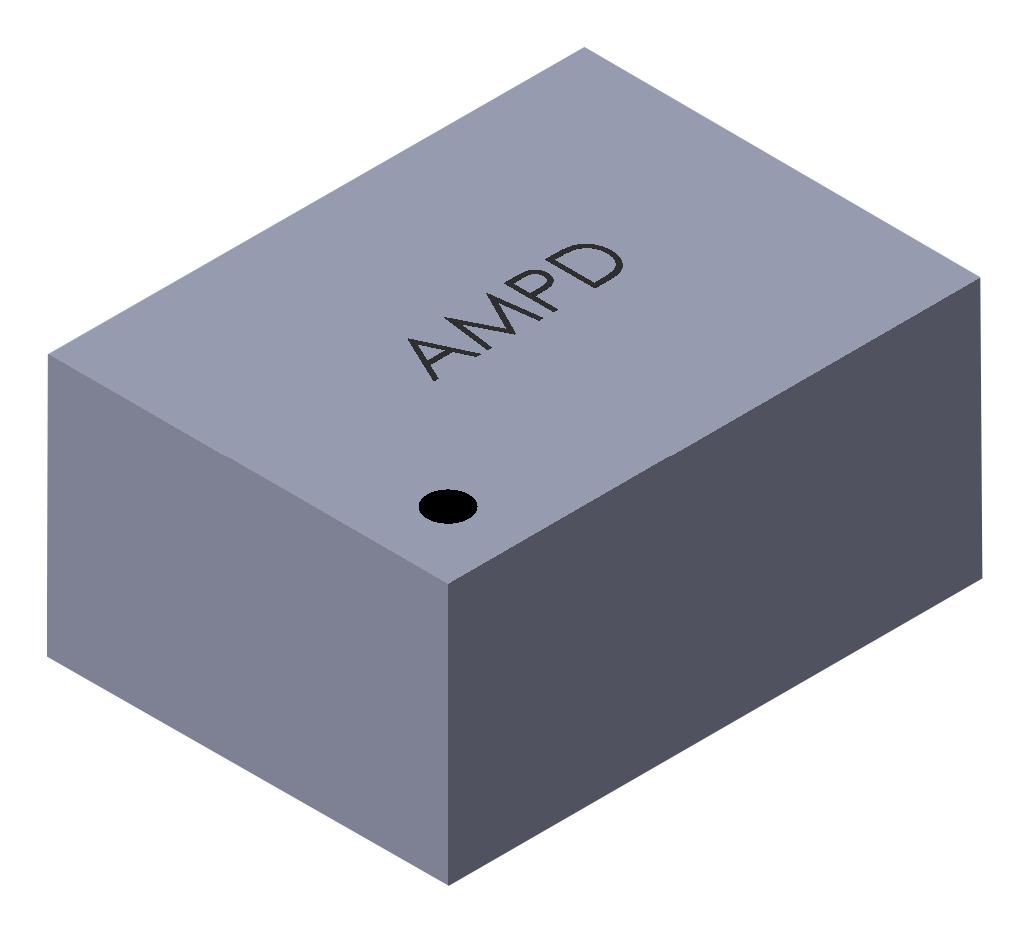

ABRACON AMPDGFHA01T Frequency Selectable MEMS Oscillator
The AMPDGFHA01T is a frequency selectable MEMS oscillator with a compact 1.6 x 1.2 mm footprint, operating from -40°C to +85°C. It supports output frequencies from 1 MHz to 80 MHz, with low power consumption of 1.3 mA typical. It features adjustable frequency settings, RoHS compliance, and MSL=MSL1 rating. Designed for IoT and industrial applications, it offers quick frequency settling time, low jitter, and high stability, suitable for space-constrained embedded systems requiring reliable clock signals in a broad temperature range.
ABRACON AMPDGFHA01T Frequency Selectable MEMS Oscillator Specifications:
- Package Size: 1.6 x 1.2 x 0.84 mm
- Frequency Range: 1 MHz to 80 MHz
- Supply Voltage: 1.8V (-5%) to 3.3V (+10%)
- Current Consumption: 1.3 mA (typical at idle)
- Operating Temperature: -40°C to +85°C
- RoHS/RoHS II Compliant
- Reflow Profile: Preheat 150°C-200°C for 60-180 sec, Reflow at 217°C for 60-150 sec, Peak at 255°C-260°C for 20-40 sec
- Storage Temperature: -55°C to +150°C
- Mechanical Dimensions: 1.6 x 1.2 mm, 4-pin VFLGA package
Buy the Abracon Series Frequency Selectable MEMS Oscillator: AMPDGFHA01T
Secure online your Abracon series AMPDGFHA01T frequency selectable MEMS oscillator, designed for space-efficient and energy-saving solutions. This oscillator supports frequencies from 1 MHz to 80 MHz, operating reliably from -40°C to +85°C. Its low power consumption of 1.3 mA makes it ideal for IoT, industrial, and wearable applications. With RoHS compliance and a robust design, it ensures high stability, minimal jitter, and quick settling times, perfect for embedded systems requiring precise timing in constrained environments.
Order your Abracon Series frequency selectable MEMS oscillator AMPDGFHA01T today and give your projects the dependable, accurate timing they deserve.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA01T?
You can click on the BUY or RFQ button to purchase AMPDGFHA01T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA01T?
You can download the AMPDGFHA01T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA01T?
ABRACON
