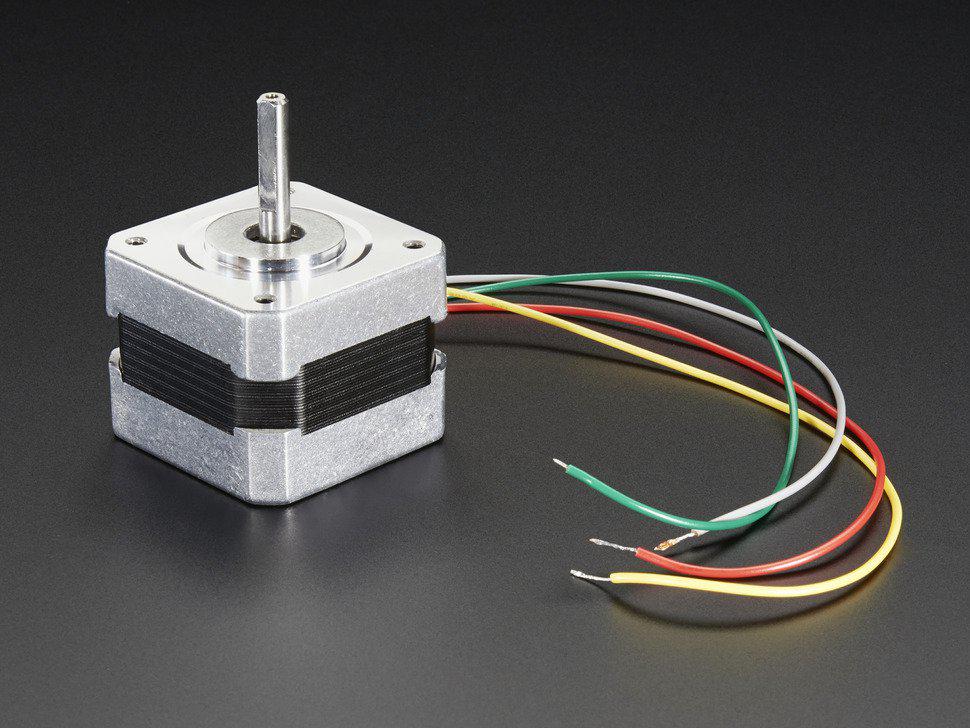

ADAFRUIT 324 High Torque Hybrid Stepper Motor
This high-torque hybrid bipolar stepper motor features a 42mm square body and 1.8° step angle, providing precise, smooth motion suitable for automation and robotics. It has an 8-inch lead length and a 5mm diameter, 24mm long drive shaft with a flat for secure coupling. Operating at 12V with a maximum current of 350mA, each winding’s resistance is 35 ohms. The motor includes four wires, 3mm M3 mounting holes spaced 31mm apart, and is designed for reliable performance in precise positioning and control applications, making it ideal for industrial automation systems.
ADAFRUIT 324 High Torque Hybrid Stepper Motor Specifications:
- Step Angle: 1.8°
- Resistance: 35Ω per winding
- Inductance: 34mH
- Rated Voltage: 12V
- Rated Current: 0.35A per phase
- Holding Torque: 1.6 Kg-cm
- Rotor Inertia: 35 g·cm²
- Shaft Diameter: 5mm
- Shaft Length: 24mm
- Lead Length: 8 inches
- Wiring: 4 wires, half-step bipolar
- Mounting Holes: M3, spaced 31mm apart
- Maximum Radial Force: 28N
- Maximum Axial Force: 10N
- Temperature Range: -20°C to +50°C
- Insulation Resistance: ≥100MΩ at 500VDC
- Dielectric Strength: 500VAC for 1 minute
- Dimensions: 42mm square body, 42.3mm width including mounting holes
Buy the Innovative 324 High-Torque Hybrid Stepper Motor for Industrial Applications
Order the 324 hybrid bipolar stepper motor online today and benefit from precise, high-torque performance suitable for industrial automation, robotics, and precise control applications. Featuring a 42mm square body, 1.8° step angle, and 12V operation, this motor provides smooth operation and reliable positioning. Easy to install with M3 mounting holes, it is perfect for demanding applications requiring consistent motion control. Enhance your automation setup by purchasing this high-quality stepper motor online now for fast delivery and trusted performance.
Buy 324 high-torque hybrid stepper motor now and experience reliable precision movement for industrial automation and robotics.
Frequently Asked Questions
Where can I buy ADAFRUIT 324?
You can click on the BUY or RFQ button to purchase 324 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 324?
You can download the 324 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 324?
ADAFRUIT
