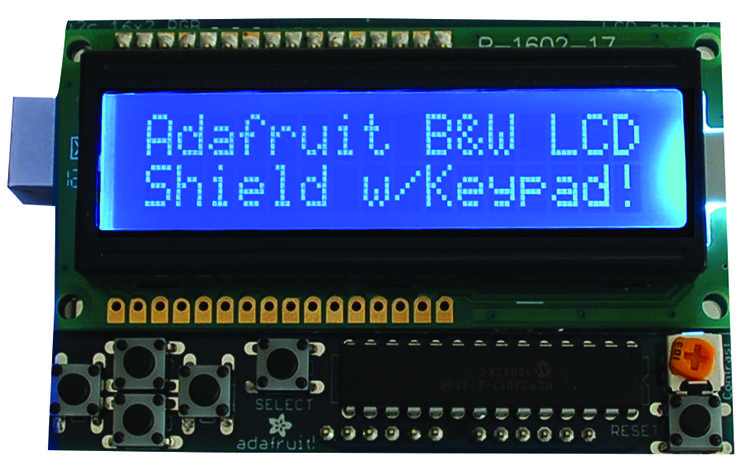

ADAFRUIT 772 LCD Shield Kit
The LCD shield kit features a 16x2 character display, ideal for creating standalone projects with integrated user interfaces. It includes four directional buttons and a select button for simple control without the need for a bulky computer. The shield measures 2.1 inches by 3.2 inches, is plug-and-play compatible with Arduino Uno, Duemilanove, Diecimilla, and Mega R3 boards, and uses only the I2C pins. It has a mounting hole size of 2.5mm and utilizes the I2C 7-bit address 0x20. The package contains the PCB, LCD display, five resistors, a 10k trim potentiometer, six pushbuttons, an MCP23017 I2C port expander chip, and two strips of 36 male header pins.
ADAFRUIT 772 LCD Shield Kit Specifications:
- Display: 16x2 character LCD, Blue & White backlight
- Dimensions: 2.1 x 3.2 inches
- Mounting Hole Diameter: 2.5mm
- I2C Address: 0x20
- Controller: MCP23017 I2C port expander
- Buttons: 4 directional + 1 select
- Included Components: PCB, LCD, resistors, potentiometer, pushbuttons, header pins
- Compatibility: Arduino Uno, Duemilanove, Diecimilla, Mega R3
- Assembly: Kit with soldering required, approx. 30 minutes
- Backlight Control: On/Off (no PWM)
- Pins used: Only two I2C pins on Arduino
- Additional Features: Easy-to-use library, automatic debounce
Buy the Adafruit Series LCD Shield Kit: 772
Enhance your Arduino projects with the LCD Shield Kit, featuring a 16x2 character display, intuitive controls, and I2C communication. This kit simplifies building standalone devices with an embedded user interface. Compatible with popular Arduino boards like Uno and Mega R3, it includes all necessary components such as buttons, resistors, and an I2C port expander. Easy to assemble within 30 minutes even for beginners, the shield supports basic backlight control. Streamline your electronics setup and develop educational, hobby, or vision projects effortlessly by purchasing this versatile shield online today.
Buy Adafruit Series LCD Shield Kit: 772 now and experience seamless integration with Arduino for user-friendly projects featuring easy assembly and I2C connectivity.
Frequently Asked Questions
Where can I buy ADAFRUIT 772?
You can click on the BUY or RFQ button to purchase 772 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 772?
You can download the 772 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 772?
ADAFRUIT
