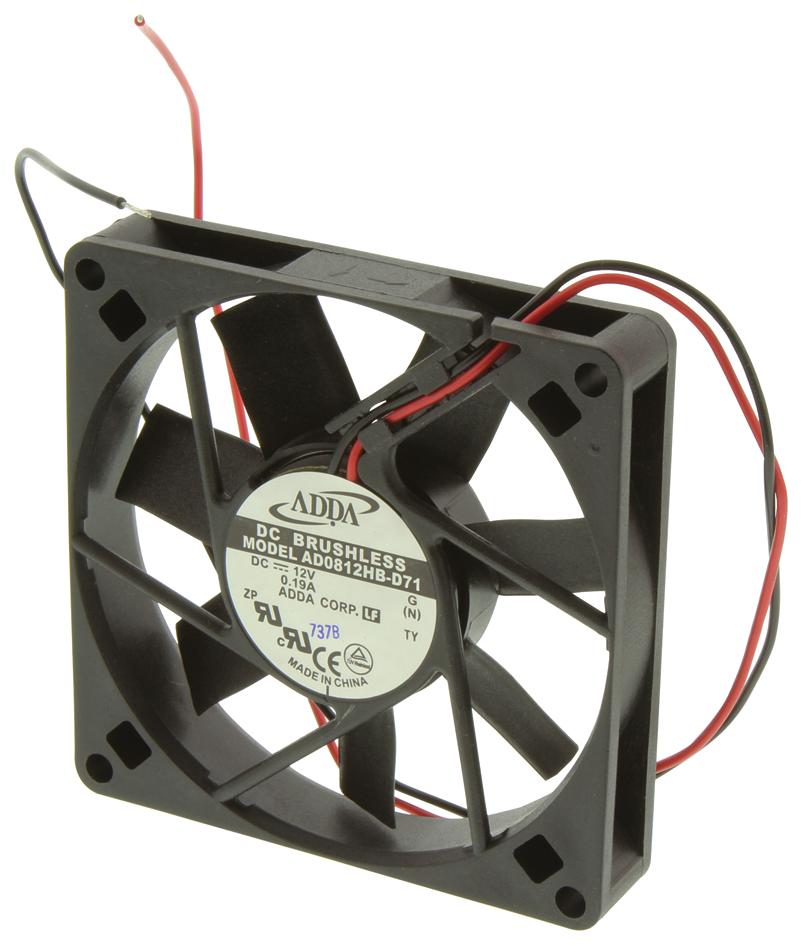

ADDA AD0812HBD71 High-Speed Axial Fan
The AD0812HB-D71 is a 12VDC axial fan with a compact 15mm thickness, featuring a high-speed ball bearing and a plastic UL94V-0 rated frame and impeller. It operates at 3200 RPM, consumes only 1.08W, and provides efficient airflow for electronic cooling. This fan includes motor and polarity protection, insulation resistance over 10 MΩ at 500VDC, and is suitable for temperatures from -10°C to 70°C. Its reliable performance makes it ideal for industrial, control systems, and electronic equipment cooling solutions.
ADDA AD0812HBD71 High-Speed Axial Fan Specifications:
- Frame Material: Plastic (UL94V-0)
- Impeller Material: Plastic (UL94V-0)
- Bearing Type: Hypro ball bearing
- Lead Wire: UL1007 AWG24
- Voltage Available: 5V, 12V, 24V
- Operating Voltage: 12VDC
- Current: 1.08A
- Power Consumption: 1.08W
- Fan Speed: 3200 RPM
- Dimensions: 80x80x15 mm
- Maximum Airflow: 29.90 CFM
- Maximum Static Pressure: 0.129 mmAq
- Noise Level: 334 dB/A
- Temperature Range: -10°C to 70°C
- Insulation Resistance: >10 MΩ at 500VDC
- Flammability: UL94V-0
- Protection Features: Motor and polarity protection
- Certifications: UL Listed
Buy the Buy ADA Axial Fan Part Number AD0812HBD71 Online
Purchase the ADA Series 12V axial fan AD0812HBD71 online today to enjoy fast delivery and trusted quality. Its compact design, high RPM, and advanced protection features make it ideal for electronic cooling, industrial equipment, and control systems. With UL94V-0 flame resistance, high insulation resistance, and a durable plastic frame, this fan guarantees efficient airflow and long-lasting performance, meeting your project requirements for reliability and safety. Buy now to enhance your electronic cooling solutions.
Order your ADA Series AD0812HBD71 axial fan today and ensure reliable airflow in your electronic cooling projects with high-speed performance and safety features.
Frequently Asked Questions
Where can I buy ADDA AD0812HBD71?
You can click on the BUY or RFQ button to purchase AD0812HBD71 from an authorized ADDA distributor.
How do I troubleshoot issues or seek technical support for part AD0812HBD71?
You can download the AD0812HBD71 datasheet or visit the ADDA website for support.
Who is the manufacturer of AD0812HBD71?
ADDA
