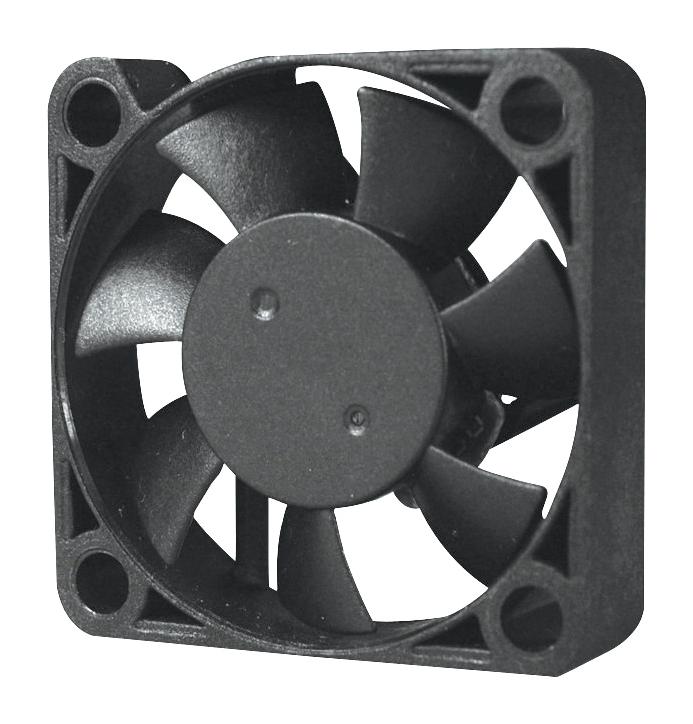

ADDA AD0412MBG70T1 DC Cooling Fan
This product is a compact, high-performance DC brushless axial cooling fan designed for electronic cooling applications. It features dimensions of 40x40x10 mm, rated voltage of 12.0 VDC, and a maximum speed of 4800 RPM. The fan provides an airflow of 4.700 CFM and static pressure of 0.078 Inch H₂O, with noise levels around 24.0 dB(A). It is equipped with dual ball bearings, UL94V-0 material construction, and advanced safety features including integrated protection against locked rotor conditions, ensuring reliable operation within specified environmental parameters.
ADDA AD0412MBG70T1 DC Cooling Fan Specifications:
- Dimensions: 40x40x10 mm
- Bearing Type: Two ball bearings
- Rated Voltage: 12.0 VDC
- Operating Voltage Range: 10.8 VDC to 13.2 VDC
- Start-up Voltage: 9.0 VDC
- Rated Speed: 4800 RPM ±20%
- Air Flow: 4.700 CFM (min. 3.760 CFM)
- Static Air Pressure: 0.078 Inch H₂O (min. 0.049 Inch H₂O)
- Noise Level: 24.0 dB(A) (max. 28.0 dB(A))
- Rated Current: 0.08 Amp ±10%
- Power Consumption: 0.72 Watt
- Material: UL94V-0 Glass Filled Polyester
- Life Expectancy: 70,000 hours at 40°C and 65% RH
- Lead Wires: UL 1007, AWG26, length approx. 300mm
- Protection: Rotor locked protection, no polarity protection
- Electrical Resistance: Not less than 10M ohm at 500V DC
- Dielectric Strength: No damage at 500 VAC for 60s
- Temperature Range: -10°C to +70°C, humidity 65% RH
Buy the Adda 2018.04.03 – Reliable Cooling Fan for Industrial Applications
Purchase the Adda series AD0412MB-G70T1 high-performance DC axial cooling fan online today. With robust construction, UL/CE safety approvals, and a lifespan of 70,000 hours, this fan offers excellent airflow of 4.7 CFM at 12VDC. It features low noise levels, dual ball bearings for durability, and reliable protection against electrical faults. Ideal for electronics cooling, industrial equipment, and sensitive systems needing consistent airflow and thermal regulation. Shop now for dependable performance and quick delivery.
Order your Adda series AD0412MB-G70T1 axial cooling fan today and ensure reliable thermal management for your electronic projects.
