ADDA AD1224UBF51 axial cooling fan

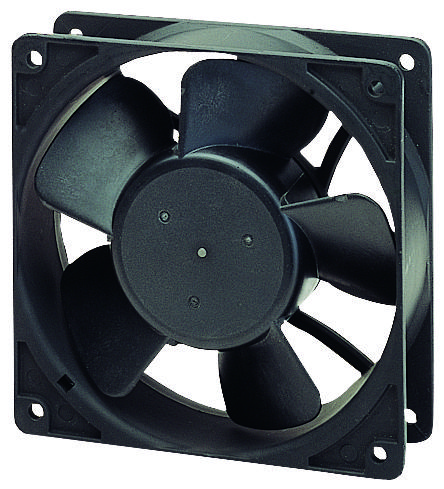

The AD1224UB-F51 is a high-speed 24V DC axial fan measuring 120x120x38 mm, featuring a plastic frame with five blades, over 70000 hours lifespan, and a rated power of 9.12W. It offers an airflow of 120.109 CFM, static pressure up to 0.335 inches H2O, noise level of 48.0 dB(A), and includes motor and polarity protection. Designed for reliable operation, it withstands temperatures from -10°C to 70°C, incorporates ball bearings, and meets UL, TUV, CE, and CSA safety standards. The fan’s durable construction makes it suitable for industrial cooling applications.
ADDA AD1224UBF51 axial cooling fan Specifications:
- Dimensions: 120x120x38 mm
- Rated Voltage: 24 VDC
- Operating Voltage Range: 21.6 to 26.4 VDC
- Rated Speed: 3200 RPM + 10%
- Airflow: 120.109 CFM (min 108.098 CFM)
- Static Air Pressure: 0.335 Inch H 2O (min 0.271 Inch)
- Noise Level: 48.0 dB(A) (max 52.0 dB(A))
- Bearing Type: Ball
- Rated Power: 9.12 Watt
- Life Expectancy: 70,000 hours at 40°C/65% RH
- Material: Plastic frame, UL94V-0 polyester blades
- Insulation Resistance: >10 megaohms at 500VDC
- Dielectric Strength: 500VAC for 1 minute
- Temperature Range: -10°C to 70°C
- Protection: Motor and polarity protection
- Environmental Standards: UL, TUV, CE, CSA
Buy the Adda AD1224UB-F51 U– Reliable Axial Cooling Fan for Industrial Applications
Explore the Adda AD1224UB-F51 axial cooling fan, designed for high reliability and efficiency in industrial cooling systems. Featuring a 120x120x38 mm size, five durable blades, ball bearings, and UL, TUV, CE safety certifications, this fan offers an airflow of over 120 CFM and static pressure up to 0.335 inches H2O. Rated at 24V DC with a lifespan exceeding 70,000 hours, it ensures optimal performance under temperature conditions from -10°C to 70°C. Purchase online today for trusted industrial cooling solutions with proven longevity and safety features.
Get Adda AD1224UB-F51 today—built for precise cooling and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ADDA AD1224UBF51?
You can click on the BUY or RFQ button to purchase AD1224UBF51 from an authorized ADDA distributor.
How do I troubleshoot issues or seek technical support for part AD1224UBF51?
You can download the AD1224UBF51 datasheet or visit the ADDA website for support.
Who is the manufacturer of AD1224UBF51?
ADDA
