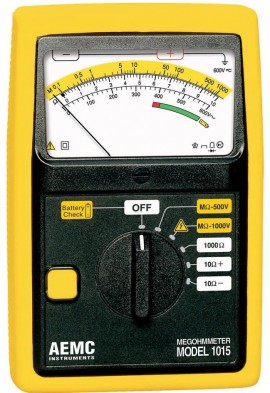

AEMC INSTRUMENTS 1015 Insulation Tester
The AEMC 1015 is a true Megohmmeter tailored for insulation testing, delivering test voltages of 500V and 1000V with resistance measurement capabilities up to 1000 MΩ. It features a push button for quick battery checks, resistance testing up to 1000 Ω, and continuity ranges from 0 to 10 Ω with positive and negative indications. The device offers continuity tests with a 200mA current, is lightweight and compact, and includes a large, easy-to-read colored scale. Its shockproof rubber housing and soft carrying case enhance durability and portability. Suitable for plant and field service, it meets safety standards in harsh environments.
AEMC INSTRUMENTS 1015 Insulation Tester Specifications:
- Test Voltage: 500V and 1000V
- Resistance Measurement Range: 0.1 to 1000 MΩ
- Short Circuit Current: <6mA (max)
- Open Circuit Voltage: 0 to 600V AC
- Continuity Test Range: 0 to 10 Ω
- Continuity Short Circuit Current: >2mA
- Continuity Open Circuit Voltage: 4.5 to 6.5V
- Frequency Range: 45 to 400Hz
- Input Impedance: 300kΩ
- Power Source: 4x 1.5V AA Alkaline batteries (included)
- Safety Test Voltage: 600V
- Durable: Shockproof rubber housing, soft carrying case included
Buy the Buy AEMC Megohmmeter Part Number 1015 Online
Order the AEMC 1015 Megohmmeter online today for reliable insulation testing in industrial and field environments. This device offers accurate measurements up to 1000 MΩ, test voltages of 500V and 1000V, and features a large, easy-to-read scale. Its shockproof rubber housing ensures durability, while the included accessories such as test leads, case, and batteries enhance portability. Whether for safety checks or testing electrical insulation, this compact and lightweight meter provides fast and precise results in demanding conditions. Buy now for dependable performance.
Buy AEMC 1015 Megohmmeter now and experience precise insulation testing with a rugged, compact design suitable for harsh environments.
Frequently Asked Questions
Where can I buy AEMC INSTRUMENTS 1015?
You can click on the BUY or RFQ button to purchase 1015 from an authorized AEMC INSTRUMENTS distributor.
How do I troubleshoot issues or seek technical support for part 1015?
You can download the 1015 datasheet or visit the AEMC INSTRUMENTS website for support.
Who is the manufacturer of 1015?
AEMC INSTRUMENTS
