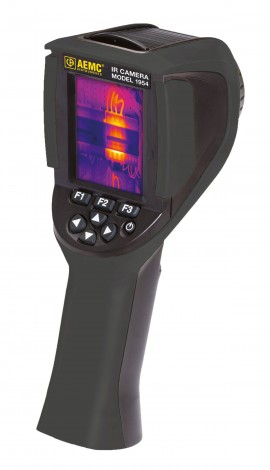

AEMC INSTRUMENTS 1954 Thermal Imaging Camera
The AEMC 1954 thermal imaging camera offers focus-free, crisp thermal and real images without adjustments, with temperature measurement from -4°F to 482°F (-20°C to 250°C). It captures audio narration, features automatic temperature correction, and wirelessly connects via Bluetooth to compatible test instruments and loggers. It supports locating hot/cold spots, measuring points, displaying temperature profiles, and freezing colors. Includes CAMReport software for data download and reporting. Built to endure drops from 6 feet, with long battery life, it’s ideal for electrical, mechanical, building inspections, leak detection, and thermal analysis in industrial applications.
AEMC INSTRUMENTS 1954 Thermal Imaging Camera Specifications:
- Thermal Detector Type: UFPA microbolometer
- Spectral Range: 8~14μm
- Resolution: 120 x 160
- NETD: <80mK at 86°F (30°C)
- Frequency: 9Hz
- Field of View: 28° x 38°
- IFOV: 4 mrad
- Minimal Focal Distance: 0.98 ft (0.3m)
- Visual Image Resolution: 480 x 640 pixels
- Display Screen: 2.8 inch LCD
- Temperature Range: -4°F to 482°F (-20°C to 250°C)
- Accuracy: ±2°C or ±2% of reading
- Storage: 2GB Micro SD card
- Image Storage: Infrared and real images with automatic parallax compensation
- Operational Temperature: -4° to 122°F (-15° to 50°C)
- Drop Resistance: 6 ft (2 m)
- Impact Resistance: 25G
- Vibration Resistance: 2G
- Protection Class: IP54
- Power: 4x AA batteries, rechargeable NiMH or alkaline, typical battery life 13 hours
- Connectivity: Bluetooth, micro USB, integrated emissivity and environmental sensors
- Dimensions: 8.86 x 4.92 x 3.27 in (225 x 125 x 83 mm)
- Weight: 25 oz (700 g)
Buy the Buy AEMC Thermal Imaging Camera Model 1954 Online
Purchase the AEMC 1954 thermal imaging camera online and enhance your maintenance and inspection procedures. This durable, focus-free thermal camera provides crisp thermal and real images, with temperature measurement from -4 to 482°F. It supports audio narration, Bluetooth connectivity with compatible tools for combined data analysis, and includes CAMReport software for detailed reporting. Its rugged design withstands drops from 6 feet, and long battery life ensures all-day operation, making it ideal for electrical, mechanical, and building inspections, leak detection, and thermal analysis in industrial settings.
Buy AEMC Model 1954 thermal camera now and experience high-resolution thermal imaging with durability, wireless connectivity, and comprehensive analysis capabilities.
Frequently Asked Questions
Where can I buy AEMC INSTRUMENTS 1954?
You can click on the BUY or RFQ button to purchase 1954 from an authorized AEMC INSTRUMENTS distributor.
How do I troubleshoot issues or seek technical support for part 1954?
You can download the 1954 datasheet or visit the AEMC INSTRUMENTS website for support.
Who is the manufacturer of 1954?
AEMC INSTRUMENTS
