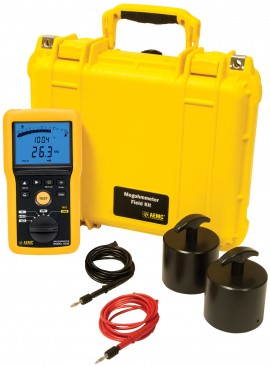

AEMC Instruments 6536ESDKit Insulation Tester
This AEMC 6536 ESD Kit features a versatile megohmmeter with a built-in timer and lock function for hands-free operation. It provides automatic safety checks, including audiovisual alerts and test inhibition when voltage exceeds 25 V, ensuring user and device protection. Designed for precise testing, it allows voltage setting in 1V increments within a range of 10 to 100 V for insulation, continuity, and voltage measurements. The device offers a maximum insulation resistance of 20 GΩ, a timed test mode up to 40 minutes, and a test lock function for prolonged measurements up to 15 minutes. It includes continuity testing at 20 or 200 mA, low resistance measurement with lead resistance compensation, and a True RMS AC/DC voltmeter capable of measuring up to 700 V. Additional features include auto discharge after insulation tests, a hold function, a large dual display with blue backlight, auto standby to conserve battery, and compliance with international standards such as IEC/EN 61557. Rated for CAT IV 600 V, this kit is ideal for testing communication and Ethernet cables, electronic components, small motors, pumps, transformers, and specialized applications such as aerospace and defense sectors requiring specific test voltages.
AEMC Instruments 6536ESDKit Insulation Tester Specifications:
- Insulation Resistance Measurement: Up to 20 GΩ
- Test Voltage: 10V to 100V adjustable in 1V steps
- Voltage Measurement: Up to 700 V True RMS AC/DC
- Continuity Test Current: 20 or 200 mA
- Display: Dual-line backlit LCD with logarithmic bargraph
- Batteries: 6xAA alkaline batteries included
- Protection Rating: CAT IV 600 V
- Measurement Modes: Resistance, capacitance, leakage current, AC voltage, frequency
- Timed Tests: Up to 40 minutes with auto discharge
- Size: Approximately 211 x 108 x 60 mm / 8.3 x 4.26 x 2.36 inches
- Weight: Around 850 g
- Standards: IEC 61557, IEC 61326
- Additional Features: Data storage, Bluetooth communication, software control, test lead compensation
Buy the Buy AEMC Insulation Tester Part Number 6536ESDKit Online
Purchase the AEMC 6536 ESD Megohmmeter Kit online to enjoy reliable insulation resistance measurements up to 20 GΩ, precise adjustable test voltages, and advanced safety features. This professional instrument features a large backlit dual display, Bluetooth connectivity for real-time data management, and compliance with international standards, making it ideal for aerospace, electronics, and communication cable testing. Its easy-to-use design, timed test modes, and rapid auto discharge support efficient and safe insulation analysis for demanding industrial and defense sectors.
Order your AEMC Series6536 ESD Megohmmeter today and ensure accurate insulation testing for sensitive electronic and aerospace applications.
Frequently Asked Questions
Where can I buy AEMC Instruments 6536ESDKit?
You can click on the BUY or RFQ button to purchase 6536ESDKit from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 6536ESDKit?
You can download the 6536ESDKit datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 6536ESDKit?
AEMC Instruments
