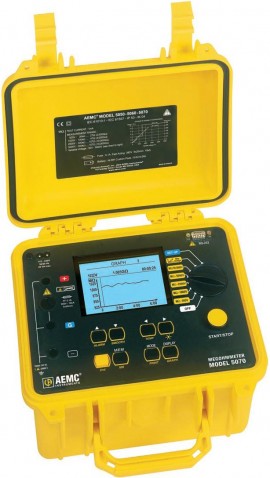

AEMC INSTRUMENTS 5070 Insulation Tester
The AEMC 5070 is an advanced megohmmeter for insulation testing across electrical components, featuring a large graphical display, real-time data plotting, programmable test voltages up to 5100V, and resistance measurement from 30kΩ to 10 TΩ. It calculates DAR, PI, DD ratios, measures capacitance and leakage current, and supports programmable parameters like run times, temperature, and alarms. Rugged and weatherproof, it is ideal for field measurements on cables, transformers, motors, and wiring, complying with IEC safety standards for reliable, precise insulation testing.
AEMC INSTRUMENTS 5070 Insulation Tester Specifications:
- Test voltage: 40 to 5100V, fixed options at 500V, 1000V, 2500V, 5000V
- Insulation resistance: 30kΩ to 10 TΩ
- Display: Large graphical, five-line alphanumeric screen with backlight
- Ratios: Automatic calculation of DAR, PI, DD
- Measurement: Capacitance and leakage current
- Memory: Stores over 1500 test results
- Power: AC or rechargeable NiMH batteries, auto power-down
- Safety: IEC 61010-1, 1000V CAT III
- Communication: RS-232 port for data transfer and report generation
- Additional features: Programmable step voltage, alarm settings, temperature compensation
Buy the AEMC Series 5070 Insulation Tester: 5070
Experience accurate and reliable insulation testing with the AEMC 5070 megohmmeter. Its large graphical display, programmable voltages up to 5100V, and extensive data storage capabilities ensure comprehensive testing of cables, transformers, motors, and wiring. Rugged, weatherproof, and compliant with IEC safety standards, this device is perfect for field technicians and engineers who require precise measurements, real-time graphical data, and seamless report generation. Buy online now to enhance your insulation testing and diagnostics for all electrical installations.
Get AEMC 5070 today—built for precise insulation testing and reliable data logging in the field.
Frequently Asked Questions
Where can I buy AEMC INSTRUMENTS 5070?
You can click on the BUY or RFQ button to purchase 5070 from an authorized AEMC INSTRUMENTS distributor.
How do I troubleshoot issues or seek technical support for part 5070?
You can download the 5070 datasheet or visit the AEMC INSTRUMENTS website for support.
Who is the manufacturer of 5070?
AEMC INSTRUMENTS
