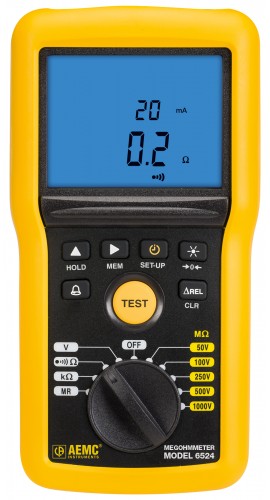

AEMC Instruments 6524 Megohmmeter
The AEMC 6524 is a versatile megohmmeter designed for professional insulation testing and electrical measurements. It features a 1 kV test voltage, resistance, continuity, frequency, and voltage measurements, with insulation resistance up to 200 GΩ. The device offers DAR and PI ratio calculations, a timed test mode up to 40 minutes, and a test lock for hands-free operation. Its large dual display with blue backlight, test lead resistance compensation, and compliance with IEC 61557 standards make it ideal for low-voltage wiring, electronic components, and industrial equipment testing, especially in aerospace and defense sectors.
AEMC Instruments 6524 Megohmmeter Specifications:
- Test Voltage: 50V, 100V, 250V, 500V, 1000V
- Insulation Resistance: up to 200 GΩ
- Resistance Measurement: 20Ω to 1 MΩ
- Continuity Test: 20mA or 200mA
- Voltage Measurement: 700V (AC/DC)
- Frequency Range: 15 to 800Hz
- Display: Dual 4000 count with backlight
- Memory: 300 measurements
- Protection Class: CAT IV 600V
- Standby Mode: Auto
- Compliance: IEC 61557 parts 1,2,4,10
- Power Supply: 6x AA batteries
Buy the AEMC Series Megohmmeter: Model 6524 Insulation Resistance Tester
Order the AEMC 6524 megohmmeter online today and equip yourself with a high-precision insulation resistance tester. It features resistance measurement up to 200 GΩ, dual backlit display, and comprehensive functions including resistance, continuity, frequency, and voltage testing. The device offers a timed test up to 40 minutes, DAR and PI ratio calculations, and test lead resistance compensation. Ideal for industrial, electronic, and aerospace applications, this robust instrument ensures reliable testing in compliance with IEC standards for safety and performance.
Buy AEMC 6524 now and experience unmatched reliability and professional-grade insulation testing capabilities, ideal for low-voltage and electronic equipment.
Frequently Asked Questions
Where can I buy AEMC Instruments 6524?
You can click on the BUY or RFQ button to purchase 6524 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 6524?
You can download the 6524 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 6524?
AEMC Instruments
