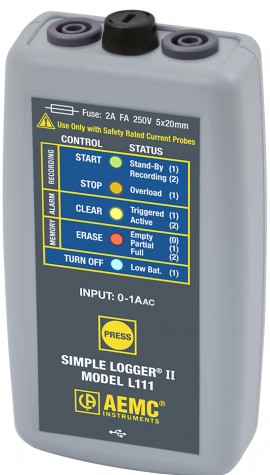

AEMC Instruments L111 Current Data Logger
The AEMC L111 Simple Logger is a portable, one-channel recording device powered by standard alkaline batteries. It performs line tracking by capturing 64 samples per power cycle and measures frequency within a ±2Hz range around the nominal line frequency (50 or 60Hz). Harmonics are calculated from these samples and can be accessed through the DataView® software. The logger measures and records current with a resolution of 0.1A, features fused inputs compatible with standard AC current probes via banana plug connections, and offers programmable storage intervals from 8 samples per second to one per day. It can store up to 240,000 measurements in non-volatile memory, with four user-selectable storage modes. Its compact, lightweight design and five LED indicators make deployment easy. Data transfer is via an isolated USB 2.0 port. Suitable for load profiling, fault detection, demand recording, and harmonic analysis, it complies with EN 61010-1 safety standards and works with separately sold probes.
AEMC Instruments L111 Current Data Logger Specifications:
- Channels: One
- Input Connection: Fused input compatible with standard AC current probes via banana plug
- Measurement Range: 0 to 1Aac (probe dependent)
- Resolution: 0.1A
- Accuracy: ±0.5% of reading + 0.5mA
- Input Impedance: 10Ω
- Sample Rate: 64 samples per cycle
- Storage Rate: Programmable from 8 samples/sec to 1 sample/day
- Storage Modes: Start/Stop, FIFO, Extended Recording Mode, Alarm
- Memory: 240,000 measurements in non-volatile memory
- Power Source: 2x1.5V AA alkaline batteries
- Battery Life: 100 hours to over 45 days
- Dimensions: 5.18 x 2.75 x 1.28 inches (132 x 70 x 32 mm)
- Communication: USB 2.0, optically isolated
- Safety Standard: EN 61010-1, 50V CAT III
- Weight: approximately 6.64 oz
- Vibration & Shock Resistance: IEC standards
Buy the AEMC L111 – Reliable Current Data Logger for Industrial Applications
Order the AEMC L111 simple logger online today and enhance your electrical testing capabilities. This compact, lightweight device captures 64 samples per cycle, offering programmable storage intervals from 8 samples per second to one per day. It stores up to 240,000 measurements in non-volatile memory, ensuring data safety even with low batteries. With five LED indicators and USB 2.0 communication, it simplifies data transfer and analysis. Ideal for load profiling, fault detection, and harmonic recording, this dependable device is essential for professionals in power quality and electrical diagnostics.
Buy AEMC L111 now and experience unmatched reliability and performance in current measurement and power analysis.
Frequently Asked Questions
Where can I buy AEMC Instruments L111?
You can click on the BUY or RFQ button to purchase L111 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part L111?
You can download the L111 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of L111?
AEMC Instruments
