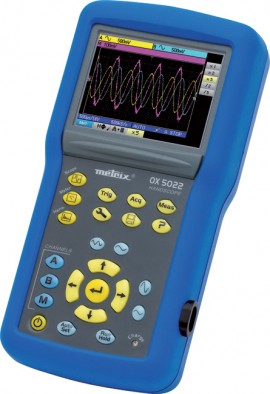

AEMC INSTRUMENTS OX5022CK Portable Oscilloscope
The AEMC OX5022-CK Handscope is an ergonomically designed instrument featuring a 3.5-inch color LCD screen with LED backlighting for clear data display. It combines three measurement functions into one device: a 20 MHz oscilloscope, an independent 8000-count multimeter with power measurement capabilities, and a built-in harmonic analyzer extending to the 31st harmonic (fundamental frequency between 40 Hz and 450 Hz). The device includes two fully isolated channels and offers a record capacity of up to 2700 measurements over periods ranging from 5 minutes to 1 month, with 2 MB of storage. It supports isolated USB communication via the SCPI protocol for remote programming using the supplied SX-METRO software. Designed with eco-friendly principles, it includes a multilingual help system, an 8-hour battery life, and a 3-year warranty. Ideal for field troubleshooting, education, and design verification.
AEMC INSTRUMENTS OX5022CK Portable Oscilloscope Specifications:
- Display: 3.5'' colour TFT LCD, 320x240 pixels, LED backlighting
- Channels: 2 fully isolated, CAT III 600 V
- Oscilloscope bandwidth: 20 MHz or 40 MHz
- Sampling rate: 2 GS/s in ETS mode, 50 MS/s in single-shot mode
- Memory: 2 MB, 2,500 points per channel, storage for files and images
- Multimeter: 8000-count display, AC/DC voltage, current, resistance, capacitance, frequency, power, temperature, motor speed
- Harmonic analyzer: up to 31st order, core frequency 40-450 Hz, measures VRMS, THD, harmonic order
- Connectivity: Optical USB link, optional SX-METRO software for PC control and data analysis
- Power supply: 6 AA NiMH batteries, 8 hours operation, quick charge within 2.5 hours
- Safety and EMC: IEC61010-1 Ed3, 600 V CAT III, EN61000-3, EN61326-1 compliance
- Dimensions: 214x110x57 mm, weight: 1.2 kg including batteries
- Warranty: 3 years
Buy the AEMC OX5022CK – Reliable Portable Oscilloscope for Industrial Applications
Order the AEMC OX5022CK handheld oscilloscope online today and enjoy quick delivery of this versatile, portable device. It combines an oscilloscope, multimeter, and harmonic analyzer into one ergonomic unit, perfect for electrical testing in the field. With isolated channels, USB connectivity, and an 8-hour battery life, it is ideal for troubleshooting, maintenance, and educational purposes. Get comprehensive measurements, record data over long periods, and analyze signals effortlessly. Purchase now to ensure accurate, reliable measurements wherever your work takes you.
Buy AEMC OX5022CK now and experience unmatched reliability and performance in field measurement tasks.
