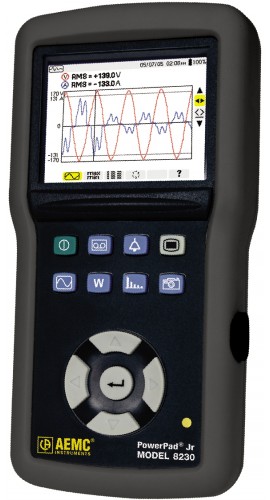

AEMC Instruments 8230wMN93BK Power Quality Analyzer
The AEMC PowerPad Jr. 8230 is a compact, shock-resistant single-phase power quality analyzer suitable for technicians and engineers. It measures up to 660V RMS or DC and current up to 6500A AC or 1400A DC, depending on the probe used. The device offers detailed analysis of power parameters including real power, reactive power, apparent power, power factor, and displacement power factor for single and three-phase systems. It also provides total harmonic distortion, individual harmonic levels, waveform capture, trend data storage, and alarm event recording. Ideal for troubleshooting, energy metering, and harmonic analysis, the PowerPad Jr. enhances power quality diagnostics with easy PC connectivity and software support.
AEMC Instruments 8230wMN93BK Power Quality Analyzer Specifications:
- Voltage (TRMS) Phase-to-Phase: 660V
- Voltage (TRMS) Phase-to-Neutral: 600V
- Current (TRMS) MN Clamp: 5mA to 6A/120A or 2 to 240A
- Current (TRMS) MR Clamp: 10 to 1000A AC, 10 to 1400A DC
- Frequency Range: 40 to 70Hz
- Measurement of KW, KVAR, PE, DPF, kWh, KVARh, KVAh, K-Factor, Flicker, Harmonics THD-R, THD-F
- Sampling Frequency: 256 samples/cycle
- Data Storage: 1.5MB for waveforms, trends, alarms
- Power Source: NiMH rechargeable battery, >8 hr battery life
- Display: VGA color LCD (320x240), adjustable brightness & contrast
- Dimensions: 8.3 x 4.3 x 2.4 inches
- Weight: 1.9 lbs (0.88kg)
- Safety Rating: EN 61010, 600V CAT II, IP54
Buy the AEMC Series PowerPad Jr. Power Quality Analyzer: 8230
Purchase the AEMC PowerPad Jr. 8230 online today and streamline your power quality diagnostics. This versatile, easy-to-use device offers precise voltage, current, harmonic, and power parameter measurements. Its compact design allows for easy handling during troubleshooting, energy metering, and system analysis. With extensive data storage, waveform capture, alarm recording, and software integration, it provides comprehensive insights into power system behavior. Buy now to ensure reliable diagnostics, improved efficiency, and optimized power management for your projects.
Order your AEMC PowerPad Jr. 8230 today and enhance your power quality diagnostics with this reliable, versatile analyzer for accurate measurements.
