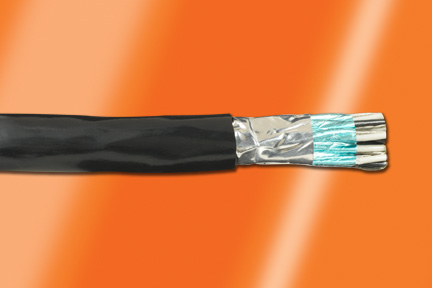

ALPHA WIRE 3223SL005 Shielded Data Cable Assembly
The ALPHA WIRE 3223 SL005 is a high-quality shielded data cable assembly, ideal for applications requiring robust signal integrity and protection from external noise. Constructed with 22 AWG TC conductors, PVC/Nylon insulation, and a TC braid shield, this cable offers excellent performance in demanding environments. Its slate jacket and clear Mylar core wrap provide additional durability and organization. Compliant with RoHS directives, the 3223 SL005 is a reliable choice for data transmission in industrial automation, networking, and other critical applications.
ALPHA WIRE 3223SL005 Shielded Data Cable Assembly Specifications:
- Component 1: MIL-W-16878/Type B/N
- Temperature Range: -55 to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 28 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Capacitance: 44 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 79 pf/ft @1 kHz, Nominal
- Inductance: 0.19 µH/ft, Nominal
- Conductor DCR: 15.2 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 4.7 Ω/1000ft @20°C, Nominal
- Conductor AWG: 22 (19/34) AWG TC
- Insulation Wall: 0.010" Wall, Nom. PVC/ 0.003" Wall NYLON
- Shield Coverage: 90% Coverage, Min.
- Jacket Wall: 0.019" Wall, Nom., PVC
- Color Code: Alpha Wire Color Code G
- Twists per foot: 6.0 Twists/foot (min)
- Core Wrap: Clear Mylar Tape, 25% Overlap, Min.
- Cable Diameter: 0.203 (0.217 Max.)
- Print: ALPHA WIRE-* P/N 3223<br>CE ROHS<br>* = Factory Code
- Packaging 1000 FT: 12 x 10 x 5 Continuous length
- Packaging 500 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging 100 FT: 6.5 x 4 x 2.5 Continuous length
