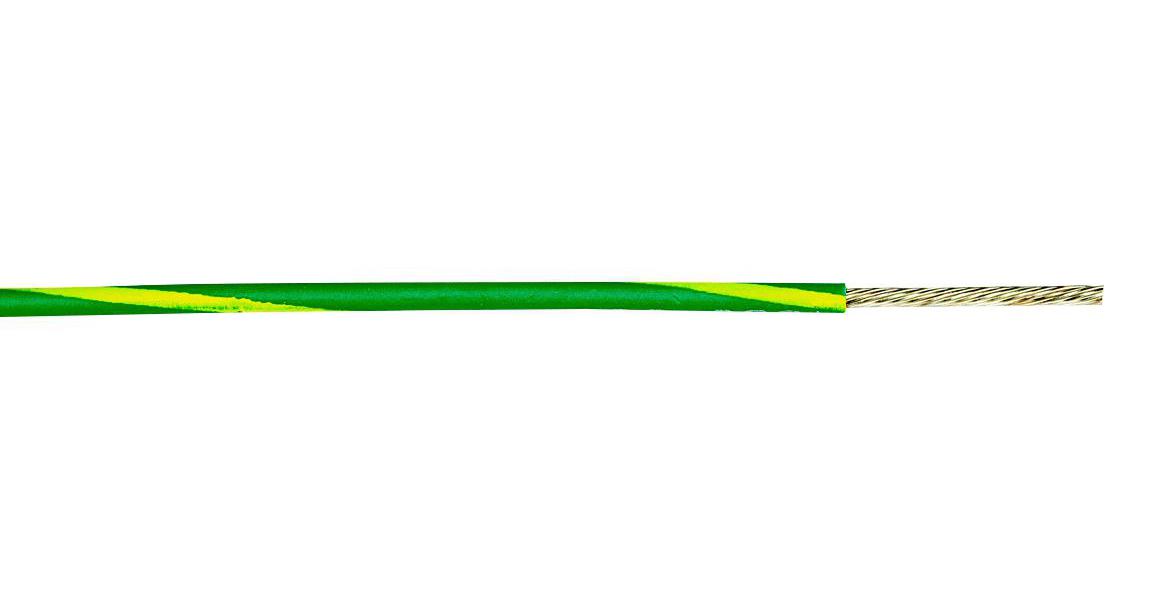

ALPHA WIRE 3079GY005 Hook-up Wire
The 3079 GY005 is a 100-foot, 14 AWG hook-up wire with stranded tinned copper conductor and PVC insulation, offering excellent flexibility, wear resistance, and chemical resistance. Suitable for industrial, automation, aerospace, and military applications, it features a 0.81 mm thick insulation, ultraviolet flame resistance, and can withstand a maximum pull tension of 12.6 lbs. The wire complies with regulation standards including REACH, RoHS, and CSA, ensuring safe usage in diverse environments. Its versatile color options include green-yellow, black, red, blue, and more, making it ideal for detailed wiring projects.
ALPHA WIRE 3079GY005 Hook-up Wire Specifications:
- Conductor: Stranded tinned copper, 14 AWG (41/30)
- Insulation Thickness: 0.81 mm
- Insulation Material: PVC
- Voltage Rating: 600 V
- Temperature Range: -40°C to 105°C
- Pull Tension: 12.6 lbs maximum
- Colors: Green-yellow, black, red, blue, white, and more
- Flame Resistance: UL VW-1, CSA FT1
- Compliance: RoHS 2, REACH, CSA International, EU Low Voltage Directive
- Outer Diameter: approximately 0.138 inches
- Length: 100 feet
- Minimum Bend Radius: 5× Cable Diameter
- Tested for oil and solvent resistance
- Suitable for automation, aerospace, military, industrial, and control applications
Buy the AlphaWire Series 1015 Hook-up Wire: 3079GY005
Purchase the AlphaWire 3079GY005 hook-up wire online now and enjoy high-quality electrical wiring for your industrial or aerospace projects. This 100-foot length features 14 AWG stranded tinned copper conductors with PVC insulation, offering excellent flexibility, chemical resistance, and flame retardance. It is suitable for automation, military, defense, and control systems, ensuring compliance with RoHS, REACH, and UL standards. Easy to strip and terminate, this versatile wire supports complex wiring needs while providing durability and safety for a wide range of applications.
Get AlphaWire 3079GY005 today—built for flexibility, durability, and reliable electrical performance in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3079GY005?
You can click on the BUY or RFQ button to purchase 3079GY005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3079GY005?
You can download the 3079GY005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3079GY005?
ALPHA WIRE
