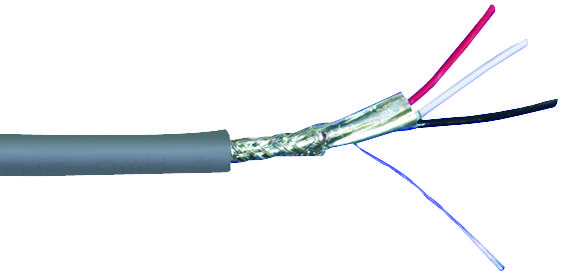

ALPHA WIRE 6330SL001 Shielded Signal Cable
This shielded cable assembly features a 24 AWG stranded TC conductor, with a PVC insulation wall of 0.010 inches. It includes a 6-conductor cable with 6.0 twists per foot, an alum/mylar foil shield with 25% overlap, a drain wire, and a TC braid with at least 65% coverage. The outer jacket is 0.032 inches thick PVC in slate color, rated for 75°C, UL, and CSA compliant. Designed for reliable signal transmission, it supports a voltage of 300V and operates within a temperature range of -20°C to 80°C, suitable for industrial and control applications.
ALPHA WIRE 6330SL001 Shielded Signal Cable Specifications:
- Conductor: 24 AWG TC
- Insulation: 0.010 inch wall, PVC, semi
- Cable assembly: 6 components, 6.0 twists/foot
- Shield: Alum/mylar tape, 25% overlap, foil facing out
- Drain wire: 24 AWG TC
- Braid: TC, 65% coverage, min
- Outer jacket: 0.032 inch PVC, slate color
- Jacket color: Slate
- Temperature Rating: -20°C to 80°C
- Voltage Rating: 300 V
- Capacitance: 32 pf/ft @1 kHz
- Ground Capacitance: 58 pf/ft @1 kHz
- Inductance: 0.19 μH/ft
- DCR: Conductor 26 Ω/1000 ft @20°C, Shield 5.5 Ω/1000 ft @20°C
- Physical dimensions vary with spool length
Buy the AlphaWire 6330 – Reliable Shielded Cable for Industrial Applications
Purchase the AlphaWire 6330 shielded signal cable online today for your industrial wiring needs. Designed with a durable PVC jacket, it offers excellent shielding with alum/mylar foil and braid coverage for interference prevention. Rated for 75°C and 300V, it meets UL and CSA standards, ensuring safety and reliability. Its flexible design supports a temperature range of -20°C to 80°C, making it suitable for control systems and machinery. Get this high-quality cable now to enhance your electrical setups with trusted performance and compliance.
Order your AlphaWire 6330 shielded cable assembly today and ensure the dependable signal transmission your industrial projects demand.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6330SL001?
You can click on the BUY or RFQ button to purchase 6330SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6330SL001?
You can download the 6330SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6330SL001?
ALPHA WIRE
