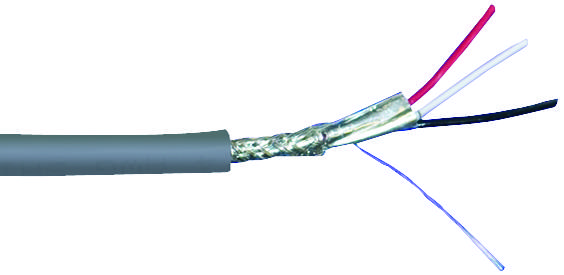

ALPHA WIRE 6359SL005 Shielded Control Cable
The shielded 24 AWG cable from Alpha Wire is designed for low voltage applications, rated for 75°C (UL). It features a PVC jacket with a slate color, a polyethylene foam insulation with a 0.016-inch wall thickness, and a foil and braid shield for enhanced electromagnetic interference protection. The cable supports maximum voltage of 300 V, is flexible with a bend radius of 10 times the cable diameter, and offers low dielectric capacitance, making it suitable for computer and control systems. Manufactured to meet RoHS and REACH standards, it is ideal for reliable, low-voltage signal transmission.
ALPHA WIRE 6359SL005 Shielded Control Cable Specifications:
- Conductor Size: 24 AWG (7/32 inch TC)
- Insulation: Polyethylene foam, 0.016 inch wall
- Jacket: PVC, 0.035 inch wall, Slate color
- Shield: Aluminum/Mylar tape with 25% overlap, foil facing out, 65% coverage braid
- Voltage Rating: 300 V
- Temperature Range: -20°C to +80°C
- Bend Radius: 10X cable diameter
- Max Pull Tension: 62 pounds
- Capacitance: 12 pF/ft @1 kHz, Ground Capacitance 26 pF/1000 ft
- Overall Dimensions: Flange x Traverse x Barrel - 18 x 12 x 8 inches
- Standards: UL, CSA, CE (RoHS, REACH)
- Environmental: EU Low Voltage Directive 2006/95/EC, VW-1, FT1
Buy the Buy Alpha Wire Part Number 6359SL005 Online
Order the Alpha Wire Shielded Control Cable today online for reliable low-voltage connections in control panels, automation, and communication systems. This 24 AWG cable with PVC jacket and aluminum/mylar shield offers excellent interference protection, flexible installation, and meets RoHS and UL standards. Its durable construction supports applications requiring a voltage rating of 300 V, with a temperature range of -20°C to +80°C. Easy to order and quick to ship, ensure your project’s success with this trusted, high-quality cable.
Get Alpha Wire 6359SL005 today—designed for low-voltage signal integrity with shielding features and high flexibility.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6359SL005?
You can click on the BUY or RFQ button to purchase 6359SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6359SL005?
You can download the 6359SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6359SL005?
ALPHA WIRE
