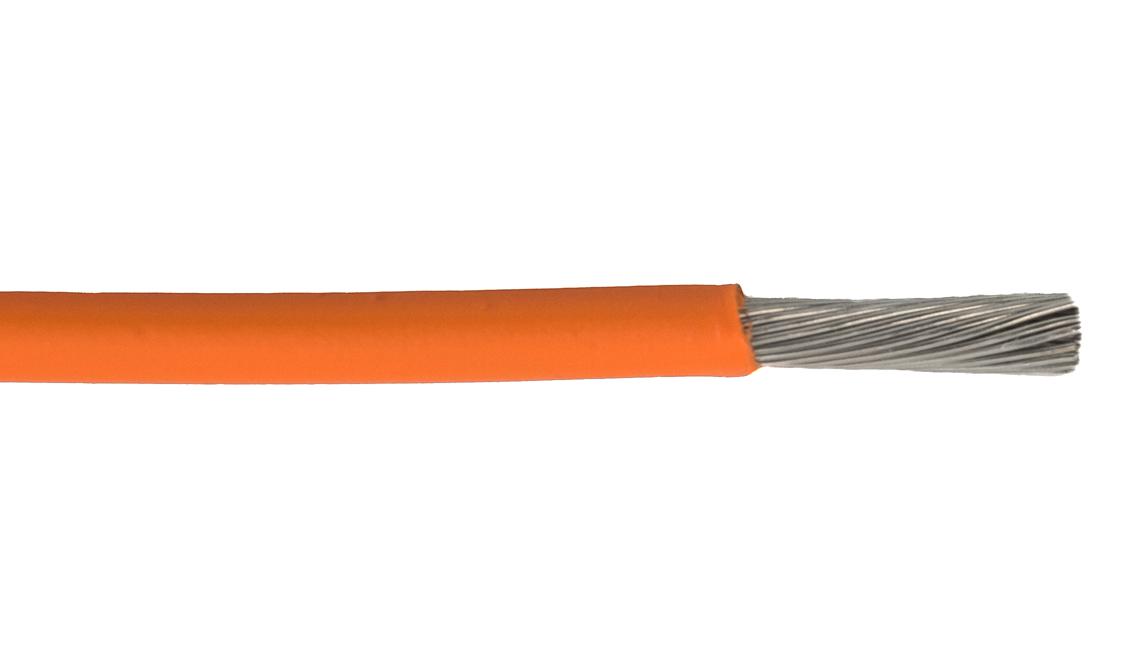

ALPHA WIRE 67250OR321 Hook Up Insulated Wire
The Alpha Wire 67250 OR321 is a robust hook-up wire suitable for a wide range of applications including appliance wiring, industrial equipment, and control panels. Constructed with a tinned copper conductor and a modified polyphenylene ether insulation, this wire provides excellent electrical performance and resistance to heat and chemicals. It meets UL and CSA standards, ensuring safety and reliability. The wire is RoHS compliant, reflecting Alpha Wire's commitment to environmental responsibility. Available in various colors and put-up lengths, the 67250 OR321 offers versatility and convenience for diverse wiring needs.
ALPHA WIRE 67250OR321 Hook Up Insulated Wire Specifications:
- Construction: 1 X 1 HOOKUP
- Conductor Size: 2.50 (140/0.16) mm2 Tinned Copper
- Insulation Diameter: 0.310 mm Wall, Nom. Modified Polyphenylene Ether
- Insulation Outer Diameter: 2.71+/- 0.05 mm
- Print: ALPHA WIRE-* P/N 67250 ECOWIRE TM 2.5MM2 E163869 RU AWM 11028 105C 600V VW-1 --- CRU AWM I A/B 105C 600V FT1 CE ROHS * = Factory Code
- Colors Available: BLACK, RED, WHITE, BLUE, GREEN, BROWN, YELLOW, ORANGE, VIOLET, GREEN/YELLOW
- UL Style: AWM/STYLE 11028
- UL Voltage Rating: 105°C / 600 VRMS
- UL Flammability Rating: VW-1
- CSA Rating: C(RU) AWM I A/B FT1
- CSA Voltage Rating: 105°C / 600 VRMS
- Halogen Free: Yes
- Flame Behavior: IEC 60332-2
- Temperature Range: -40 to 105°C
- Bend Radius: 10X Cable Diameter
- Electrical Voltage Rating: 600 VRMS
- Inductance: 0.1 μH/m, Nominal
- Conductor DCR: 8.2 Ω/Km @20°C, Nominal
- Packaging 500M: 12 x 4.5 x 3.5 inches
- Packaging 100M: 6.5 x 2 x 1.9 inches
- Packaging 50M: 6.5 x 2 x 1.9 inches
- REACH SVHC Status: Does not contain SVHC in excess of 0.1% mass
