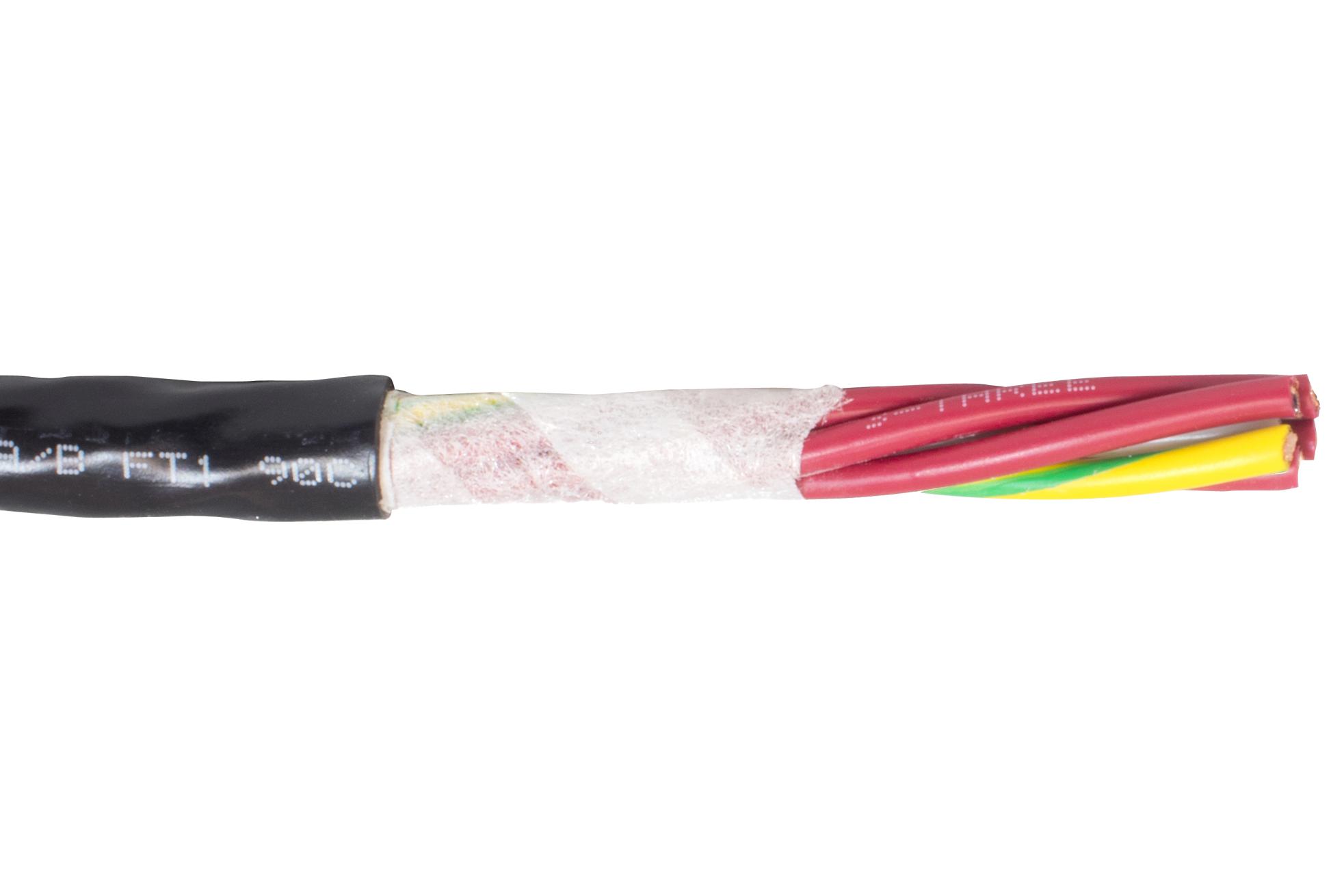

ALPHA WIRE 852604BK005 Multi-Conductor Cable
The ALPHA WIRE 852604 is a multi-conductor cable designed for demanding applications requiring flexibility and durability. It consists of four 26 AWG bare copper conductors insulated with PVC and cabled together. The oil-resistant PVC jacket provides protection and ensures long-term reliability. This cable is suitable for continuous flexing applications and is compliant with RoHS and REACH regulations, making it a safe and environmentally responsible choice for various industrial and commercial uses.
ALPHA WIRE 852604BK005 Multi-Conductor Cable Specifications:
- Conductor AWG: 26 (19/38) AWG
- Insulation Material: PVC
- Jacket Material: PVC
- Number of Conductors: 4
- Temperature Range (Static): -40 to 90°C
- Temperature Range (Dynamic): -5 to 90°C
- Bend Radius (Static): 8X Cable Diameter
- Bend Radius (Dynamic): 8X Cable Diameter
- Pull Tension (Max): 9.6 Lbs
- Voltage Rating: 600 VRMS
- Capacitance: 19.6 pF/ft @ 1 kHz
- Inductance: 0.26 µH/ft
- Conductor DCR: 35 Ω/1000ft @ 20°C
- UL Style: 10012, 2587
- CSA Rating: C(RU) AWM I/II A/B
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Packaging (1000 FT): 12 x 12 x 3.5 inches
- Packaging (500 FT): 12 x 6 x 3.5 inches
- Packaging (100 FT): 12 x 4.5 x 3.5 inches
