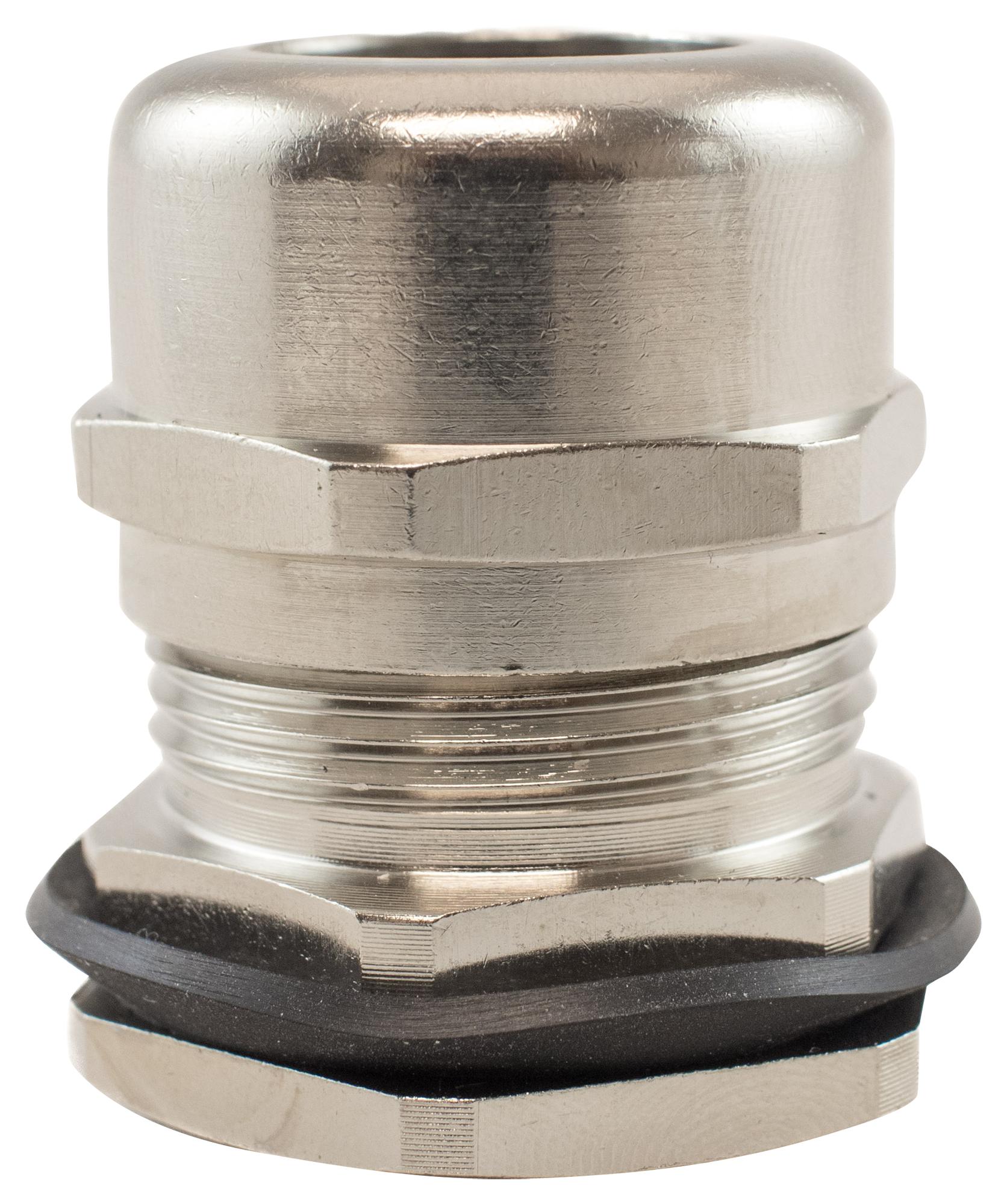

Alpha Wire MNPT34NC080 Cable Gland
The MNPT3/4 NC080 Alpha Fit® Standard Dome Design NPT Cable Gland provides excellent cable strain relief and environmental protection in demanding conditions. Constructed from durable nickel-plated brass, it features a high-quality rubber seal to prevent water ingress and contaminants. Rated IP68 for full water immersion and IP66 for dust and dirt resistance, it is suitable for industrial automation, renewable energy, and electrical installations. Compliant with UL and CSA standards, it operates from -20°C to +100°C permanently, with intermittent capability up to +150°C. Flammability rated UL94V-2, ensuring safety and reliability across multiple sectors.
Alpha Wire MNPT34NC080 Cable Gland Specifications:
- Material: Nickel-plated brass with CR rubber seal
- Protection Classes: IP68 (5 bar for 30 min), IP66
- Flammability: UL94V-2
- Temperature Range: Permanent -20°C to +100°C, Intermittent -40°C to +150°C
- Thread Sizes: 3/4 inch NPT with thread length 13.0-18.0 mm
- Clamping Range: 13.0-18.0 mm
- Outer Diameter: 30 mm
- Spanner Width: 30 mm
- Max Height: 33.0 mm
- Certifications: UL Listed, CSA Certified
Buy the Alpha Nickel-Plated Brass Cable Gland – Reliable Electrical Sealing for Industrial Applications
Order the Alpha Nickel-Plated Brass Cable Gland today to experience top-quality cable sealing and environmental protection. Ideal for industrial automation, electrical installations, and renewable energy sectors, this gland offers IP68 and IP66 ratings, high temperature tolerance, and UL/CSA certification. Its durable construction ensures long-lasting performance in hazardous environments. Easy to install with a secure clamping range of 13.0-18.0 mm, it provides waterproof, dustproof, and contamination-resistant sealing. Purchase online now to guarantee reliable electrical connections across your projects.
Buy Alpha Nickel-Plated Brass Cable Gland now and ensure secure, water-resistant electrical connections in your industrial projects.
