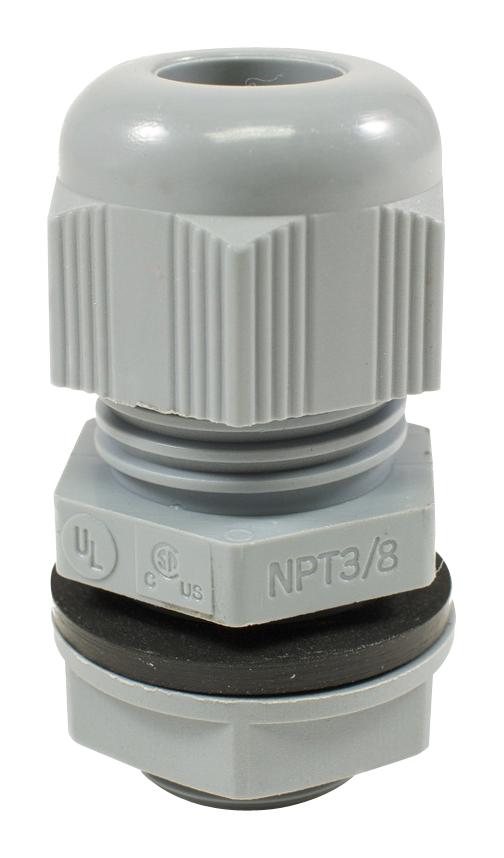

ALPHA WIRE PNC1SL080 Cable Gland
The PNC1 SL080 Fit® Standard Dome Design NPT Cable Gland offers superior cable strain relief and environmental protection suitable for industrial automation and electrical installations. Constructed with a high-strength polyamide 6 body in slate RAL 7001 color, it resists dust, dirt, and sand while providing waterproof, watertight, and pressure-resistant sealing with an IP68 rating (5 bar for 30 minutes). It features robust rubber seals, a locknut, and gasket to ensure a complete, reliable seal against water ingress. Meets IP66/IP68 standards, UL94V-2 flammability, and operates effectively from -20°C to +100°C permanently, intermittently up to +150°C, making it ideal for demanding industry environments.
ALPHA WIRE PNC1SL080 Cable Gland Specifications:
- Material: Polyamide 6
- Color: Gray, RAL 7001
- Protection Class: IP 68, IP 66
- Flammability: UL 94 V-2
- Temperature Range: -20°C to +100°C permanently, -30°C to +150°C intermittently
- Thread Type: NPT according to ANSI B1.20.1
- Thread Sizes: 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1 1/2 inch, 2 inch
- Clamping Range: 5.0-10.0 mm, 6.0-12.0 mm, 10.0-14.0 mm, 13.0-18.0 mm, 18.0-25.0 mm
- Max Thread Length: 15-18 mm depending on size
- Spanner Width: 22-42 mm
- Outer Max. Height: 22-50 mm depending on model
- Approvals: UL 514, CSA C22.2
- Packaging: Standard package of 10 glands per package
Buy the Alpha Wire PNC U2013 Reliable Cable Gland for Industrial Applications
Purchase the Alpha Wire PNC1 cable gland online now to ensure your industrial installations are protected with high-quality, waterproof, and flame-retardant sealing solutions. Designed for demanding environments, it provides excellent strain relief and environmental resistance, meeting UL and CSA standards. Its durable polyamide construction guarantees long-lasting performance in temperatures from -20°C to +150°C. With various sizes available, these glands are suitable for electrical, automation, and renewable energy systems, delivering dependable sealing and safety in challenging industrial conditions.
Order your Alpha Wire Series PNC1 cable gland today and give your projects the dependable quality they deserve, ensuring watertight sealing and environmental protection.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC1SL080?
You can click on the BUY or RFQ button to purchase PNC1SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC1SL080?
You can download the PNC1SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC1SL080?
ALPHA WIRE
