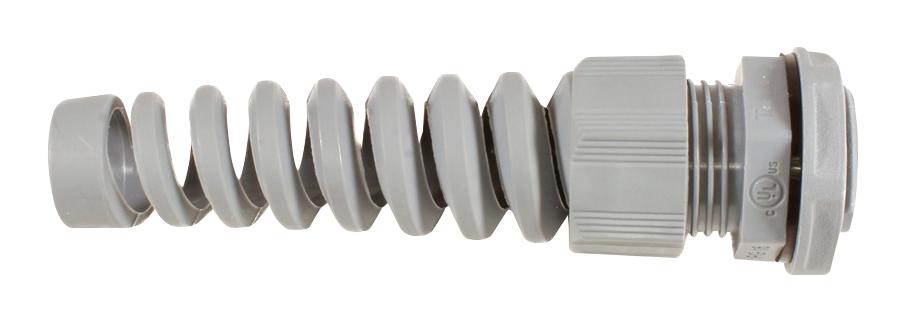

ALPHA WIRE PPS9SL080 Cable Gland
The PPS9 SL080 Alpha Fit® Flexible Spiral Design PG Cable Gland is an industrial-grade component designed for reliable cable strain relief and environmental protection. Constructed from high-strength polyamide 6 in slate (RAL 7001), it features a robust rubber seal system that provides watertightness and protection against dust, dirt, and sand, meeting IP68 standards (5 bar for 30 minutes). The gland is supplied with a locknut and gasket for a complete installation solution, making it suitable for renewable energy, industrial automation, and electrical equipment applications. It is UL listed (514), CSA certified (C22.2), and rated for temperatures from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). The product also complies with flammability standards (UL94V-2).
ALPHA WIRE PPS9SL080 Cable Gland Specifications:
- Material: Polyamide 6 in slate (RAL 7001)
- Protection Class: IP68 5 Bar, 30 min
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Flammability: UL94V-2
- Thread Type: PG according to DIN 40430 sw
- Approvals: UL 514, CSA C22.2
- Thread Sizes: PG7, PG9, PG11, PG13.5, PG16
- Clamp Range: 30-65mm, 40-80mm, 50-100mm, 60-120mm, 100-140mm
- Outer Diameter: Varies per size, up to 27mm for PG16
- Max Height: Approx. 28-31mm depending on size
- Package: 10 glands per standard package
Buy the Buy Alpha Wire Cable Gland Part Number PPS9SL080 Online
Experience dependable cable strain relief with the Alpha Wire PPS9SL080 cable gland, ideal for industrial automation and renewable energy setups. Made from durable polyamide 6, it features IP68 waterproof standards and is UL listed, CSA certified, providing exceptional environmental protection. Rated from -20°C to +100°C permanently and up to +150°C intermittently, it ensures safety and longevity in demanding conditions. Perfectly suited for electrical equipment requiring robust sealing, quick installation, and compliance with safety standards, it is available for purchase online now for efficient project execution.
Buy Alpha Wire PPS9SL080 cable gland now and ensure reliable cable management with high environmental protection and fire-resistant materials.
