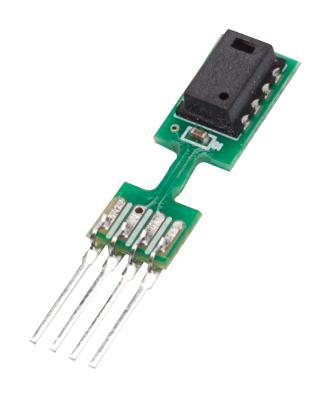

AMPHENOL ADVANCED SENSORS CC2D25SSIP Humidity and Temperature Sensor
The ChipCap 2-SIP humidity and temperature sensor by Telaire, produced by Amphenol Advanced Sensors, offers accurate, reliable monitoring suitable for HVAC, process control, medical devices, and automotive applications. It features a fully calibrated, temperature-compensated digital output with ±2%RH accuracy from 20% to 80% RH, and ±3% over the full range. Its Single In-Line Package (SIP) design allows easy installation, field replacement, and efficient air circulation for rapid response. Operating on 2.3V to 5.5V, the device ensures high performance in harsh environments, making it ideal for OEM and mass applications.
AMPHENOL ADVANCED SENSORS CC2D25SSIP Humidity and Temperature Sensor Specifications:
- Supply Voltage: 2.3V to 5.5V
- Accuracy: ±2%RH (20-80% RH), ±3% over full range
- Temperature Range: -40°C to 85°C
- Response Time: 5 sec min to 20 sec max (63%)
- Long-term Drift: <0.5%RH/year
- Output: Digital (I2C), calibrated, temperature compensated
- Package: Single In-Line Package with V-core capacitor on FR4 substrate
- Dimensions: Approximate length 7.30 mm, width 5.08 mm, height 4.90 mm
- Operating Humidity Range: 0-100% RH (non-condensing)
- Storage Temp: -55°C to 150°C
- Maximum Junction Temperature: 150°C
- Soldering: IR reflow at 260°C for 40 sec, manual up to 350°C for 4 sec
Buy the Amphenol Series ChipCap 2-SIP: CC2D25SSIP
Purchase the advanced Amphenol Series ChipCap 2-SIP CC2D25SSIP humidity and temperature sensor online today to enhance your HVAC, process control, or automotive systems with high accuracy and robust performance. Featuring easy installation, field replaceability, and fast response times, this sensor provides precise digital readings with ±2%RH accuracy. Its compact SIP design ensures ideal air circulation and reliable operation in harsh environments. Trust in the quality and consistency that makes this product suitable for OEM mass production and critical industrial applications.
Order your Amphenol Series ChipCap 2-SIP CC2D25SSIP today and ensure reliable humidity and temperature sensing in your critical applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS CC2D25SSIP?
You can click on the BUY or RFQ button to purchase CC2D25SSIP from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part CC2D25SSIP?
You can download the CC2D25SSIP datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of CC2D25SSIP?
AMPHENOL ADVANCED SENSORS
