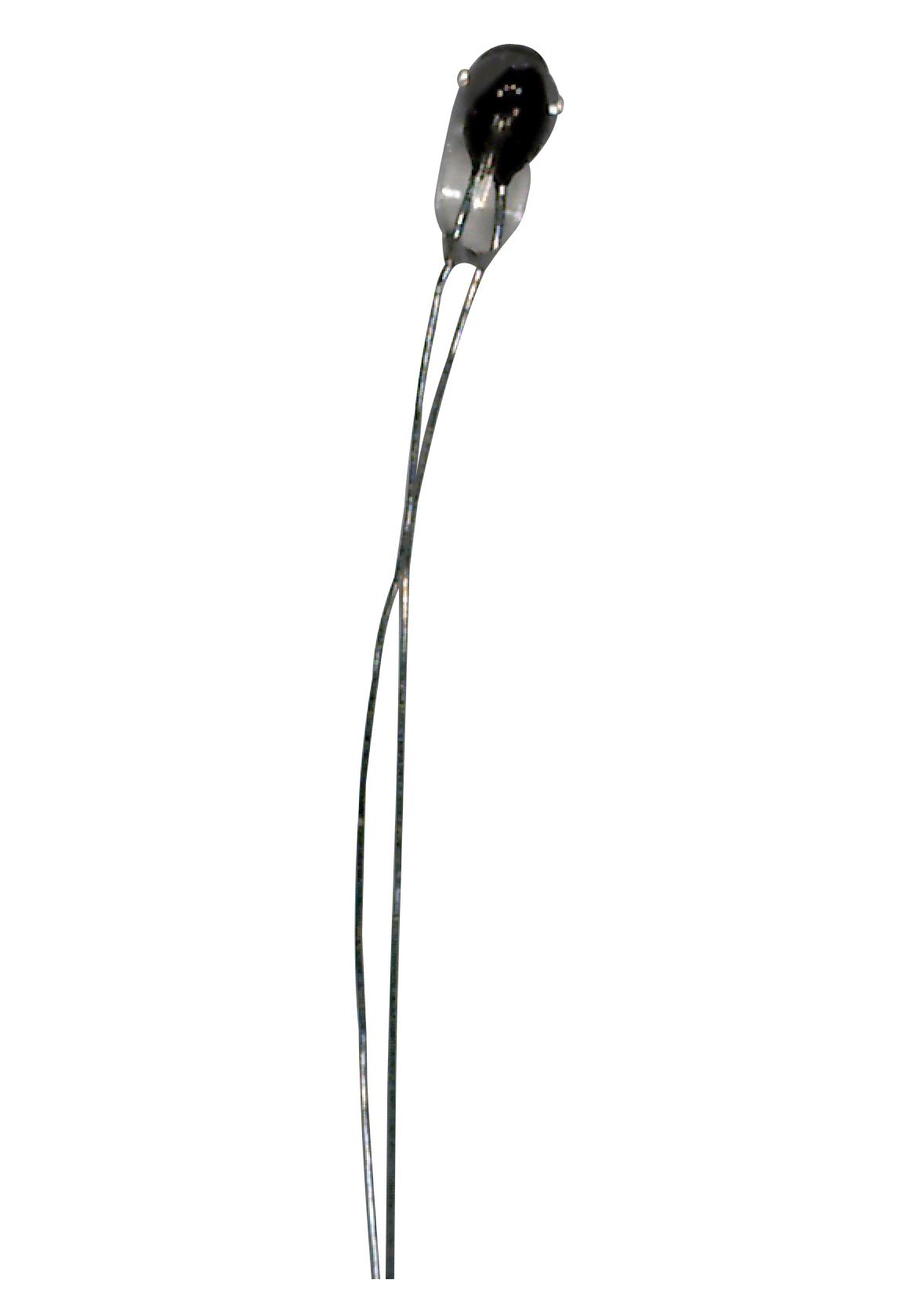

AMPHENOL ADVANCED SENSORS BR14KA303L Glass Encapsulated Bead Thermistor
Amphenol Advanced Sensors' BR14KA303L is a glass encapsulated bead thermistor ideal for applications requiring precise temperature sensing and control. Its rugged construction provides a hermetic seal and improved strain relief compared to standard bead thermistors. The thermistor is suitable for self-heated applications like liquid level sensing or gas flow measurement, and is recommended for assembly operations. It operates within a temperature range of -112°F (-80°C) to 221°F (105°C), and is unaffected by severe environmental exposures. Available with platinum alloy lead wires and various resistance ranges, this thermistor offers versatility and reliability for a wide range of industrial applications.
AMPHENOL ADVANCED SENSORS BR14KA303L Glass Encapsulated Bead Thermistor Specifications:
- nominal_diameter: 0.014 in (0.36 mm)
- maximum_diameter: 0.016 in (0.41 mm)
- maximum_length: 0.032 in (0.81 mm)
- lead_material: platinum alloy
- maximum_lead_length: 0.312 in (7.9 mm)
- operating_storage_temperature_range: -112°F (-80°C) to 221°F (105°C)
- intermittent_operation_temperature: 1112°F (600°C)
- thermal_response_times: Very fast
- encapsulation: Rugged glass encapsulation
- resistance_range: 1 to 1.6 MΩ (depending on material system)
- dissipation_constant_still_air: 0.10 mW/°C (BR14)
- dissipation_constant_still_water: 0.50 mW/°C (BR14)
- thermal_time_constant_still_air: 1 second (BR14)
- thermal_time_constant_plunge_into_water: 14 msec (BR14)
