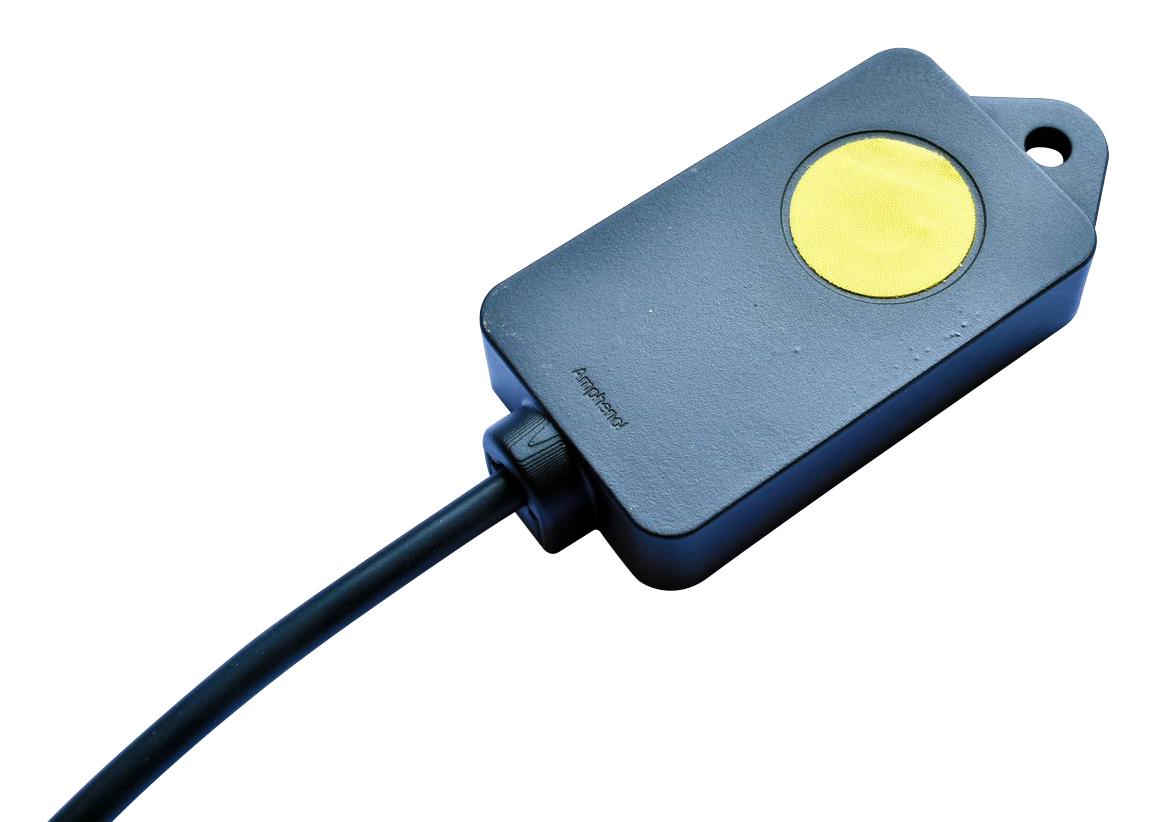

AMPHENOL ADVANCED SENSORS T302215K51 CO2 Sensor
The Telaire T3022 Series is a reliable, IP65-rated CO2 sensor designed for OEM applications, providing accurate measurements over a range of 0 to 5000 ppm using Non-Dispersive Infrared (NDIR) technology. Features include factory calibration, self-calibrating ABC Logic™, digital output, and compatibility with environmental control systems via I2C. Suitable for HVAC, demand-based ventilation, and heat exchanger control, it operates within 0°C to 50°C, with an extended 15-year lifespan, low power consumption, and robust ingress protection for harsh environments.
AMPHENOL ADVANCED SENSORS T302215K51 CO2 Sensor Specifications:
- Measurement Range: 0 to 5000 ppm
- Method: Non Dispersive Infrared (NDIR), gold plated optics, diffusion or flow through sampling
- Overall Dimensions: 60mm x 35mm x 15mm
- Accuracy: 400-5000 ppm + 75 ppm or 10% of reading
- Temperature Dependence: 0.2% FS per °C
- Stability: < 2% of FS over 15 years
- Pressure Dependence: 0.13% per mm Hg
- Response Time: 7 minutes approx.
- Output: Digital, I2C protocol
- Protection: IP65
- Power Supply: 4.5-5.5 VDC, Peak 200mA, Avg. 25mA
- Operating Conditions: 0°C to 50°C, 32°F to 122°F, 95% RH non-condensing
- Storage Conditions: -40°C to 70°C, -40°F to 158°F
- Certifications: REACH, ROSH, Prop65, UL94 5VA flammability
- Calibration Interval: Not required
Buy the Buy Amphenol CO2 Sensor Part Number T3022-1-5K-5 online
Experience precise carbon dioxide monitoring with the Amphenol CO2 sensor. Its IP65-rated enclosure ensures durability in harsh environments, while ABC Logic™ offers self-calibration for consistent accuracy over 15 years. Ideal for HVAC, demand-based ventilation, and heat exchanger control, this sensor features factory calibration, a compact size, and low power consumption. Easy to install with IP65 ingress protection and digital I2C output, it is the ultimate choice for OEMs seeking reliable, maintenance-free indoor air quality measurement with long-term stability and compliance with safety standards.
Get Amphenol T3022-1-5K-5 today—designed for accurate, reliable CO2 measurement in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T302215K51?
You can click on the BUY or RFQ button to purchase T302215K51 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T302215K51?
You can download the T302215K51 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T302215K51?
AMPHENOL ADVANCED SENSORS
