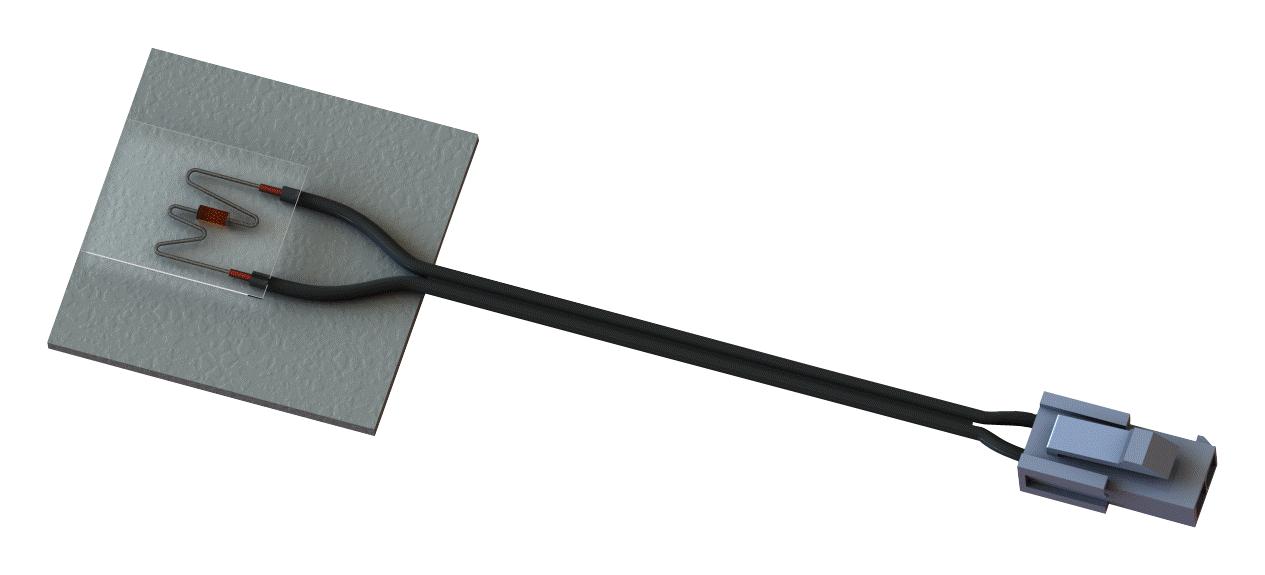

AMPHENOL ADVANCED SENSORS JS5698 Surface Temperature Sensor
Self-adhering surface temperature sensors by Thermometrics are designed for industrial HVACR applications, especially for water tanks and boiler reservoirs. These sensors utilize ceramic powders loaded into adhesive tapes to ensure high thermal conductivity and long-term stability while detecting over-temperature conditions effectively. Suitable for reservoir tanks in solar water heating systems, they are best placed between the tank and insulation, not exposed to wind, rain, or sunlight. Features include multiple sizes, flexible lengths, and PVC insulated lead wires, with temperature ranges from -30°C to +70°C, ensuring reliable performance in dry environments.
AMPHENOL ADVANCED SENSORS JS5698 Surface Temperature Sensor Specifications:
- Temperature range: -30°C to +70°C
- Connector: Molex 5559 series, various sizes
- Sensor type: NTC thermistor with ceramic powder loaded contact tape
- Adhesive: Pressure sensitive with ceramic powders, foam backing for moisture resistance
- Lead wire: PVC insulated, 3x1.5mm cross-section
- Voltage withstand: 750 Vac between contact tape and terminals
- Sensor placement: Optional on external water tanks, must be cleaned of oil residuals before application
- Sensor shape: Square, rectangular, tapered sizes available (e.g., 45x45 mm, 30x70 mm)
- Dimensions: Varies depending on model, typically up to 45 mm square or rectangular
- Application environment: Preferably dry indoor environments, not exposed to outdoor elements
Buy the Buy Thermometrics Temperature Sensor Part Number JS5698 Online
Enhance your temperature monitoring with Thermometrics surface temperature sensors, designed for industrial HVACR applications in water tanks and reservoirs. Featuring ceramic powder loaded adhesive tapes, these sensors deliver excellent heat transfer, stability, and durability. They are available in various sizes and shapes, suitable for dry environments, and equipped with PVC insulated leads for reliable connections. Ideal for diagnostic and over-temperature detection, these sensors ensure efficiency and safety in water heating and industrial systems. Purchase online now for dependable temperature control solutions.
Buy Thermometrics JS5698 now and experience reliable, high thermal conductivity temperature sensing for industrial HVACR and water heating systems.
