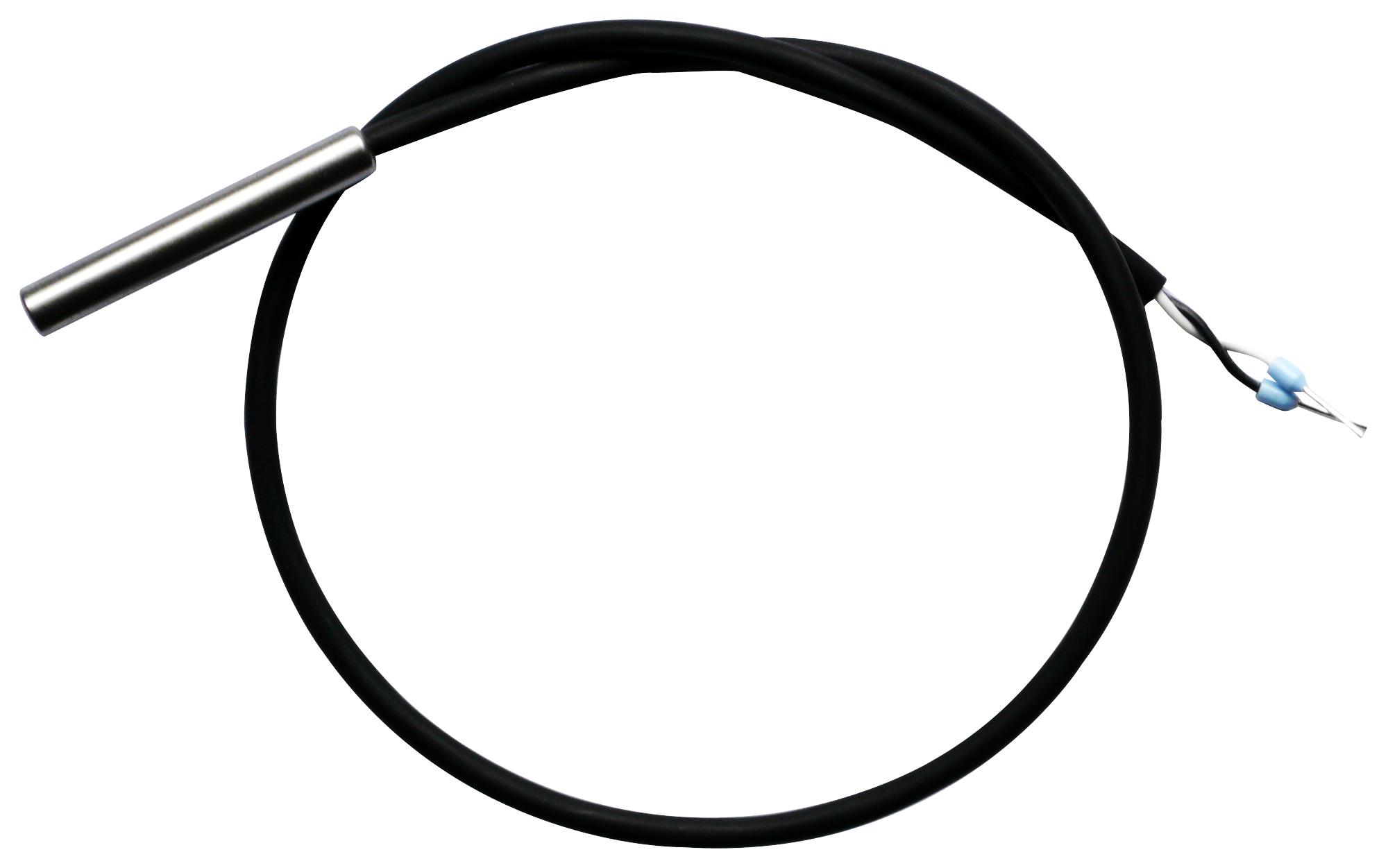

AMPHENOL ADVANCED SENSORS JS8746C020 Harsh Environment Temperature Sensor
The JS8746C020 harsh environment temperature sensor is designed for marine and industrial applications requiring reliable temperature measurement. Built with a stainless steel housing with corrosion resistance, it withstands salt, ozone, UV, and cleaning agents. It operates in temperatures from -40°C to 125°C and has a resistance of 10,000 ohms at 25°C with a tolerance of +0.2°C. Certified for IP68 protection, this sensor exceeds 14 days of Highly Accelerated Corrosion Test (HACT), ensuring durability in demanding environments such as shipping, HVAC, and refrigeration systems. Its double-insulated cable and crimped terminals ensure secure connections.
AMPHENOL ADVANCED SENSORS JS8746C020 Harsh Environment Temperature Sensor Specifications:
- Resistance at 25°C: 10,000 ohms nominal
- Temperature Range: -40°C to 125°C
- Thermal Equilibrium Temperature Tolerance: +0.2°C or +0.15°C
- Housing: Stainless steel, corrosion-resistant A2 grade
- Protection Level: IP68
- Cable: Double-insulated, multicore copper, tin-coated, 19mm x 0.14mm cross-section
- Withstand Voltage: 2.5kV rms for 1 minute
- Time Constant: 20 seconds or less
- Dimensions: Approximate length 95.8 mm (PRINCIPLE DIMENSIONS)
- Resistance change: Various resistance values for different models, tested across temperature ranges
Buy the Amphenol Series JS8746 Temperature Sensor: JS8746C020
Discover the dependable performance of the harsh environment temperature sensor designed for marine and industrial use. With corrosion-resistant stainless steel housing, IP68 protection, and proven durability against salt, ozone, UV, and cleaning agents, this sensor reliably operates from -40°C to 125°C. Its precision resistance at 25°C plus certified compliance guarantees top performance under demanding conditions. Ideal for shipping, HVAC, refrigeration, and control systems, order online today and enhance your project's reliability with this high-quality temperature measurement solution.
Order your Amphenol Series JS8746C020 harsh environment temperature sensor today and ensure reliable, corrosion-resistant temperature measurement in demanding marine and industrial environments.
