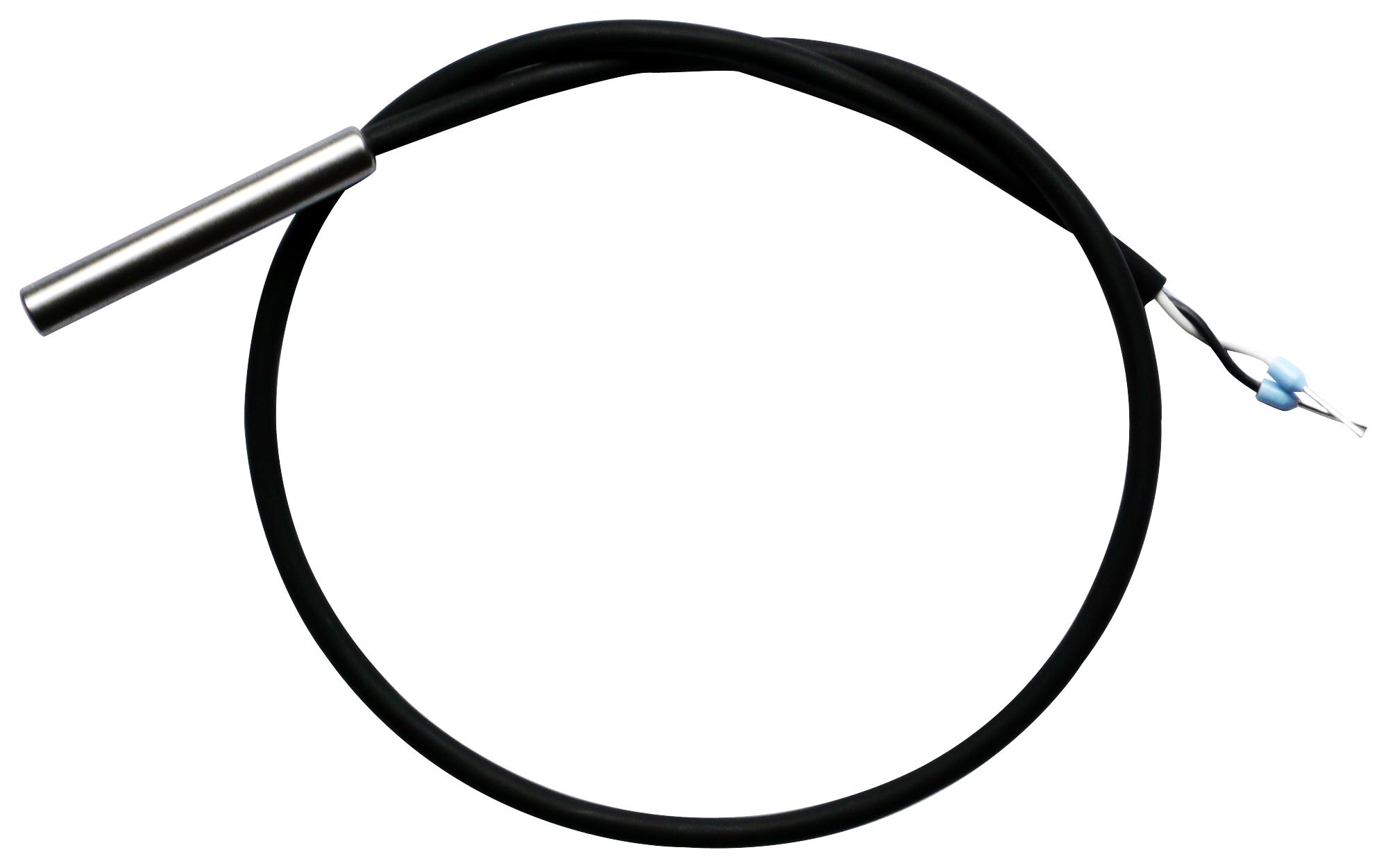

AMPHENOL ADVANCED SENSORS JS8746B015 Harsh Environment Temperature Sensor
The JS8746B015 Harsh Environment Temperature Sensor is designed for marine, HVAC, refrigeration, and demanding environments with excellent corrosion resistance and IP68 protection. Constructed with a stainless steel housing and double insulated multicore copper conductors, it withstands extreme conditions including saltwater, UV, ozone, and cleaning detergents. The sensor offers a temperature range of -40°C to 125°C, resistance at 25°C of 10,000 ohms, and a thermal equilibrium tolerance of +0.2°C or +0.15°C, making it ideal for reliable marine and industrial temperature measurement under challenging conditions.
AMPHENOL ADVANCED SENSORS JS8746B015 Harsh Environment Temperature Sensor Specifications:
- Resistance at 25°C: 10,000 ohms nominal
- Temperature Range: -40°C to 125°C
- Thermal Equilibrium Temperature Tolerance: +0.2°C or +0.15°C (0°C to 70°C)
- Housing: Stainless steel hard shell, corrosion resistant A2 or better (ISO3506)
- Cable: Double-insulated multicore copper, tin-coated, cross-sectional area 0.25 mm (23 AWG)
- Withstand Voltage: 2.5kV rms for 1 minute
- Time Constant: 20 seconds or less
- Housing Dimensions: 95.8 mm long, other dimensions as per specification
- Environmental Protection: IP68
- Resistance Properties vs. Temperature are specified, with high accuracy for marine applications
Buy the Thermometics Series Marine Temperature Sensor: JS8746B015
Purchase the Thermometics JS8746B015 Harsh Environment Temperature Sensor online today and ensure precise temperature monitoring in demanding marine and industrial conditions. Engineered with stainless steel housing and protected with IP68, this sensor is resistant to saltwater, UV, ozone, and cleaning agents. It offers a broad temperature range from -40°C to 125°C, with high accuracy and fast response time. Ideal for HVAC systems, refrigerated transport, and shipboard applications, this sensor guarantees reliable, long-term performance in extreme environments for your critical temperature measurement needs.
Get Thermometics JS8746B015 today—built for precision and long-lasting durability in harsh marine environments.
