AMPHENOL ADVANCED SENSORS MC65F103AN Temperature Sensor

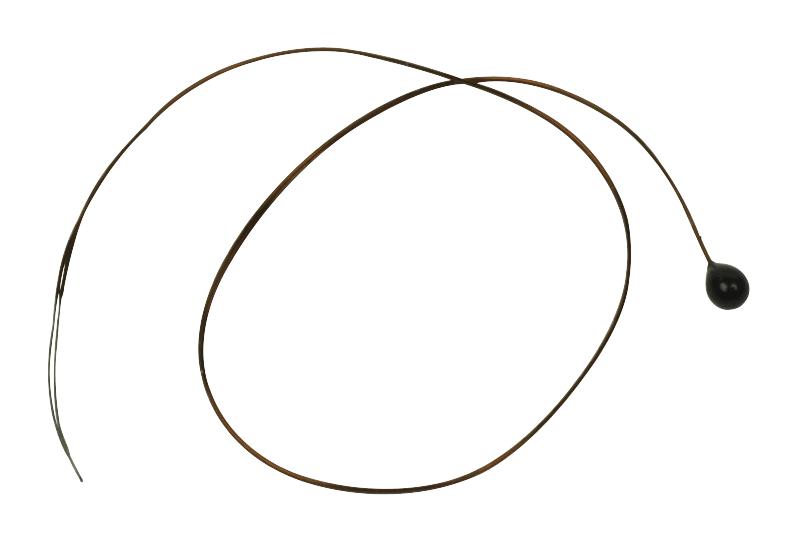

Thermistor type MC65 is an epoxy-coated, interchangeable chip thermistor designed for temperature measurement, control, and compensation. It features high sensitivity, stability, and reliability over a range of -40°F to 221°F (-40°C to 105°C). The MC65 model includes heavy isomid insulated nickel lead wires, suitable for medical applications with tight tolerances in the clinical range. Resin coating provides mechanical strength and solvent resistance. It offers various resistance options, low dissipation constants, and rapid thermal response, making it ideal for precision temperature sensing in industrial, medical, and scientific environments.
AMPHENOL ADVANCED SENSORS MC65F103AN Temperature Sensor Specifications:
- Resistance range: 1000 Q to 100 kQ (custom options available)
- Resistance tolerances: ±0.10°C; ±0.15°C depending on model
- Dimensions: Length 3 in (76.2 mm), Diameter 0.25 in (6.35 mm), Lead Wire Diameter 0.065 in (1.65 mm)
- Dissipation Constant: Still air 0.5 mW/°C, Stirred oil 4 mW/°C
- Thermal Time Constant: Still air 8 seconds, Stirred oil 0.5 seconds
- Maximum Power at 77°F (25°C): 25 mW
- Temperature Range: -40°F to 221°F (-40°C to 105°C)
- Lead wires: Heavy isomid insulated nickel wires
- Material: Epoxy coating for MF65, Resin coating for MC65
- Compliance: RoHS compliant options available
- Resistance values and tolerances vary by part number
- Dimensions include 3-inch nominal length, 0.25-inch diameter, lead length options available
- Suitable for medical, industrial, and scientific temperature sensing applications
Buy the Thermometric Series Type 65 Temperature Sensor: MC65F103AN
Purchase the Thermometric Series Type 65 MC65F103AN thermistor online today for accurate, reliable temperature measurements suitable for medical, industrial, and scientific applications. Designed with epoxy coating, high sensitivity, and stability across -40°F to 221°F, this interchangeable chip sensor features heavy nickel lead wires and customizable resistance values. Its compact size and rapid thermal response make it ideal for precise temperature control, process monitoring, and calibration. Order now to ensure high-performance temperature sensing for your critical applications.
Get Thermometric Series Type 65 temperature sensor MC65F103AN today—built for precise temperature measurement and long-lasting reliability.
