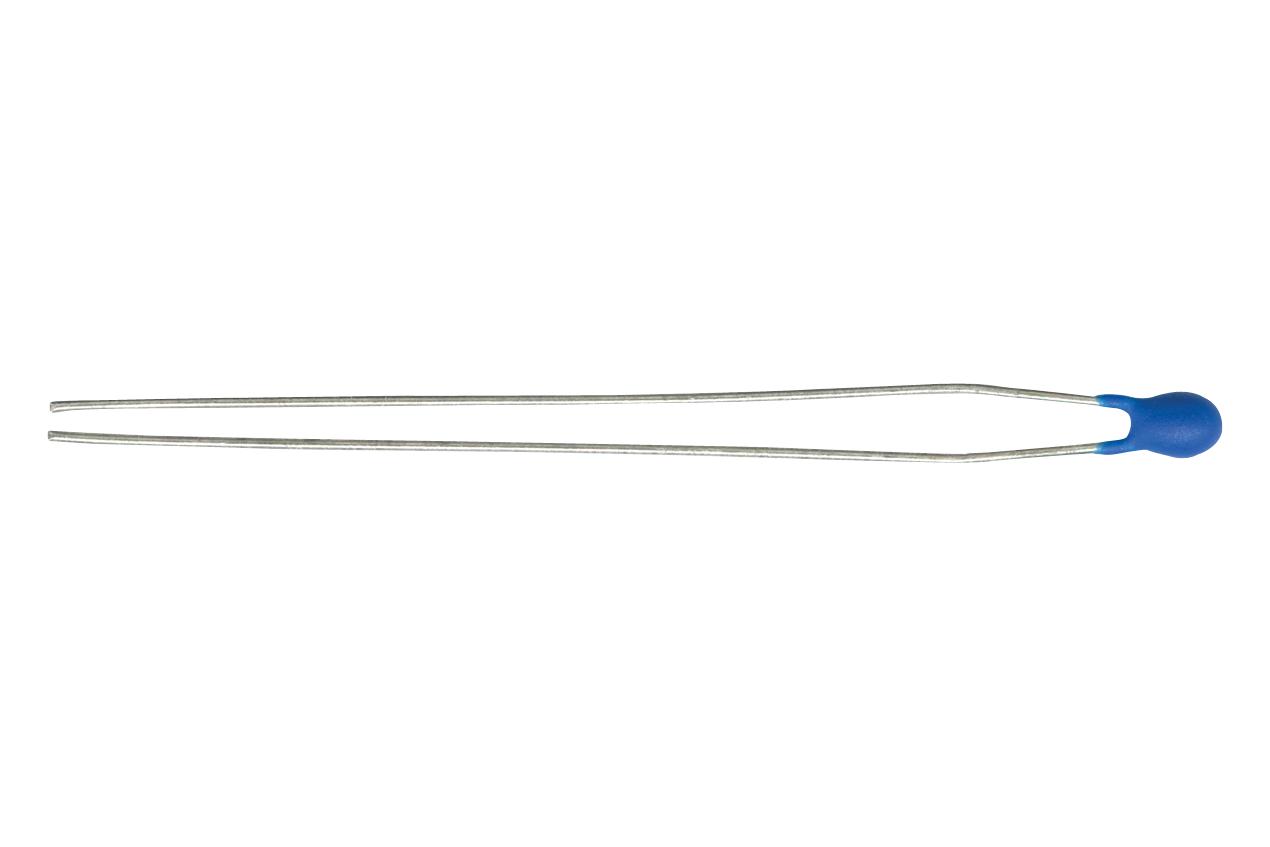

AMPHENOL ADVANCED SENSORS NK102C2R3 NTC Thermistor
The NTC Type NK thermistor is an epoxy-coated chip sensor designed for precise temperature measurement, control, and compensation in automotive, HVAC, and white goods applications. It features tight resistance and B value tolerances, operates up to 311°F (155°C) with excellent stability, and responds quickly to temperature changes. The thermistor includes solder-coated wires, small body diameter, and is available in bandolier or loose-packed formats. Its compact design and RoHS compliance make it suitable for various industrial and electronic temperature sensing needs.
AMPHENOL ADVANCED SENSORS NK102C2R3 NTC Thermistor Specifications:
- Operating temperature range: -40°F (-40°C) to 311°F (155°C)
- Resistance tolerance: ±1%
- B value accuracy: Tight tolerances specified per model
- Dimensions: 0.27 in (7 mm) max body diameter, length varies with wire length (up to 1.57 in or 40 mm)
- Wire Material: Solder-coated wires, 0.0195 in (0.5 mm) diameter
- Thermal time constant: 15s (cooling), 2.45s (ambient change)
- Dissipation factor: 2.2 mW/K
- Mass: 0.18 g
- Minimum operating temperature: -40°F (-40°C)
- Maximum operating temperature: 311°F (155°C)
- RoHS compliant, epoxy resin coating, small form factor, and fast response for precision sensing
Buy the Buy Thermometries NTC Thermistor Part Number NK102C2R3 Online
Secure your Thermometries NTC thermistor NK102C2R3 today through our online store. Crafted for accuracy and stability, this epoxy-coated chip thermistor delivers fast response and reliable temperature measurement for automotive, HVAC, and white goods. Its tight resistance tolerances and RoHS compliance ensure high-quality performance in demanding environments. With a compact body size and solder-coated wires, it fits easily into various electronic and industrial systems. Purchase now to enhance your temperature control solutions with precision-engineered sensors built for longevity and consistent operation.
Get Thermometries NTC thermistor NK102C2R3 today—designed for precise temperature sensing and durable performance in your applications.
