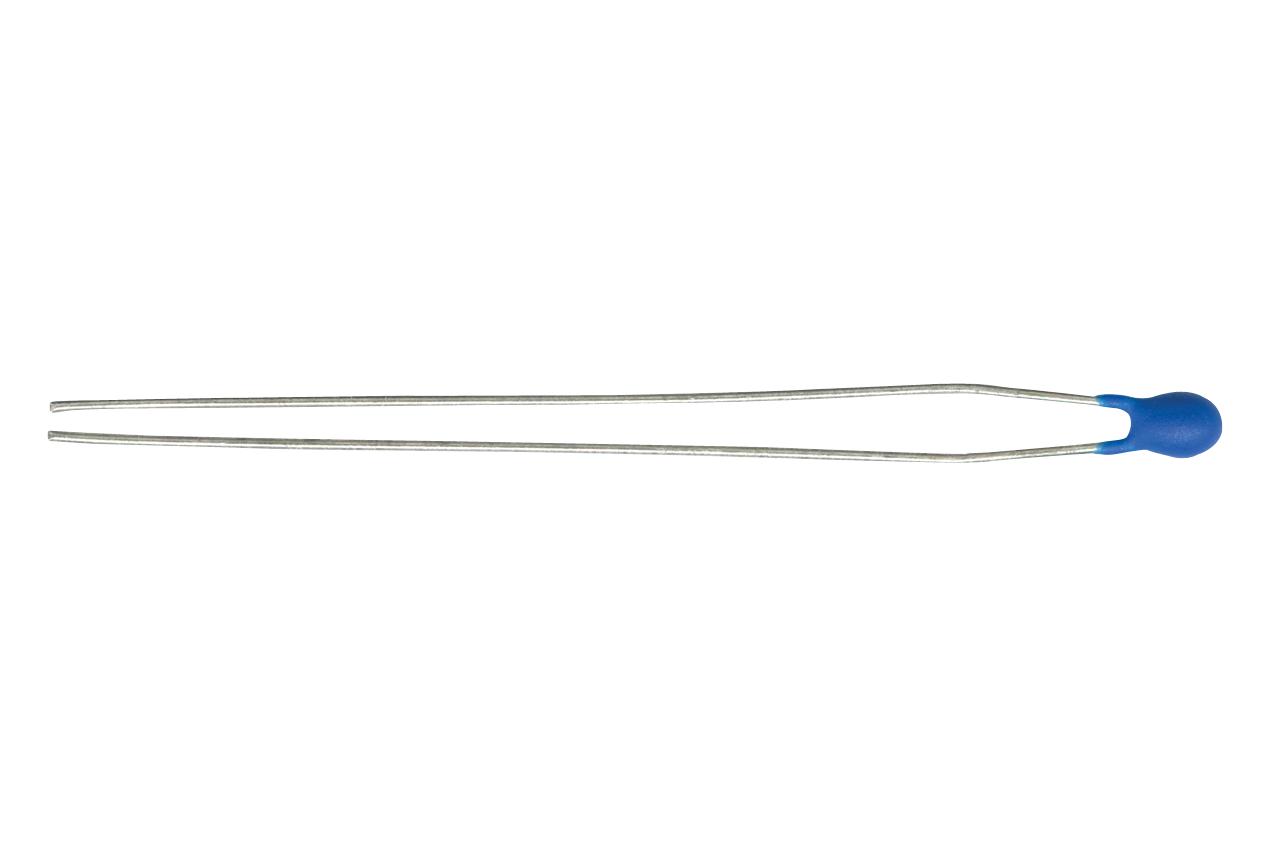

AMPHENOL ADVANCED SENSORS NK202C2R5 NTC Thermistor
The NTC Thermistor Type NK is an epoxy-coated chip thermistor designed for precise temperature measurement, control, and compensation applications across various industries including automotive, HVAC, and white goods. Featuring tight resistance and B value tolerances, it operates reliably up to 311°F (155°C), providing excellent stability and a fast response time. Its small body diameter, solder-coated wires, and epoxy resin coating make it suitable for compact, high-accuracy temperature sensing in demanding environments. Available in bandoliered and loose-packed options, it ensures flexibility in deployment and ease of integration.
AMPHENOL ADVANCED SENSORS NK202C2R5 NTC Thermistor Specifications:
- Sensor Type: NTC Chip Thermistor
- Resistance Range: From 700Ω to 50kΩ depending on model
- Temperature Range: -40°F to 311°F (-40°C to 155°C)
- Maximum Operating Temperature: 311°F (155°C)
- Thermal Time Constant: 15s (cooling), 2.45 (ambient change)
- Dissipation Factor: 2.2 mW/K
- Mass: 0.00040 lbs (0.18 g)
- Dimensions: 0.0975 in (2.5 mm) nominal thickness, wire length options from 12 mm to 40 mm (+1 mm)
- Wire Diameter: 0.0195 in (0.5 mm)
- Operating Temperature: Minimum -40°F (-40°C)
- Packaging: Loose-packed (MOQ 5,000) or bandoliered (MOQ 10,000)
- RoHS compliant
Buy the Buy Thermometriks NTC Thermistor Part Number NK202C2R5 Online
Purchase the Thermometriks NTC Thermistor NK202C2R5 online today and ensure reliable temperature measurement in your applications. With tight resistance tolerances and operation up to 311°F, this epoxy-coated chip thermistor is ideal for automotive, HVAC, and white goods industries. Its compact size, fast response time, and robust construction provide precise control and compensation. Available in bandoliered and loose-packed options, it simplifies installation and maintenance, making it an essential component for professionals seeking durable, high-performance temperature sensors for demanding environments.
Buy Thermometriks NK202C2R5 now and experience high precision temperature sensing with fast response and rugged epoxy coating.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NK202C2R5?
You can click on the BUY or RFQ button to purchase NK202C2R5 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NK202C2R5?
You can download the NK202C2R5 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NK202C2R5?
AMPHENOL ADVANCED SENSORS
