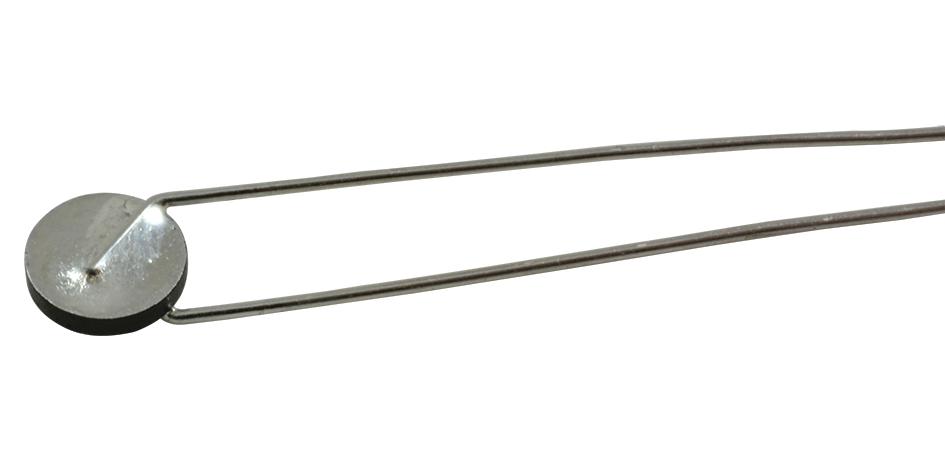

AMPHENOL ADVANCED SENSORS RL200362473D1 Thermistor disk
Point-matched disc thermistor with bare lead-wires, offering low-cost solid-state temperature sensing for industrial applications. Suitable for PCB and probe mountings, it exhibits high sensitivity and a wide operating temperature range from -58°F to 302°F (-50°C to 150°C). Available with optional epoxy coating for enhanced mechanical strength. Designed for temperature measurement, control, and compensation, these thermistors are compatible with tape and reel packaging for automatic insertion. They feature resistance tolerances down to +2% and are ideal for various industrial sensing needs.
AMPHENOL ADVANCED SENSORS RL200362473D1 Thermistor disk Specifications:
- Resistance Tolerance: +2%
- Operating Temperature Range: -58°F to 302°F (-50°C to 150°C)
- Lead Material: Bare lead-wires, optional epoxy coating
- Dimensions: Radial leads, maximum lead length 0.220 inches (5.6 mm)
- Material: Uncoated disc, available with epoxy coating
- Mechanical Strength: Excellent
- Packaging: Tape and reel per EIA RS-468A
- Application: Temperature measurement, control, and compensation
- Design: Point-matched disc thermistor
- Resistance at 25°C: varies per model (e.g., RI200%-16.4-55-M 250Ω at 25°C)
Buy the Thermmetrics RL2003 – Reliable Temperature Sensors for Industrial Applications
Order Thermmetrics RL2003 thermistors today through our online store and ensure accurate temperature measurement for your industrial processes. These reliable, high-sensitivity sensors operate across wide temperature ranges and feature resistance tolerances as low as +2%. Perfect for PCB and probe mountings, they are packaged on tape and reel for easy automatic insertion. Enhance your systems with these durable, precise thermistors designed for temperature control, compensation, and sensing applications. Purchase now for prompt delivery and exceptional performance.
Buy Thermmetrics RL2003 thermistors now and experience unmatched reliability and performance for precise temperature control in industrial settings.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS RL200362473D1?
You can click on the BUY or RFQ button to purchase RL200362473D1 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part RL200362473D1?
You can download the RL200362473D1 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of RL200362473D1?
AMPHENOL ADVANCED SENSORS
