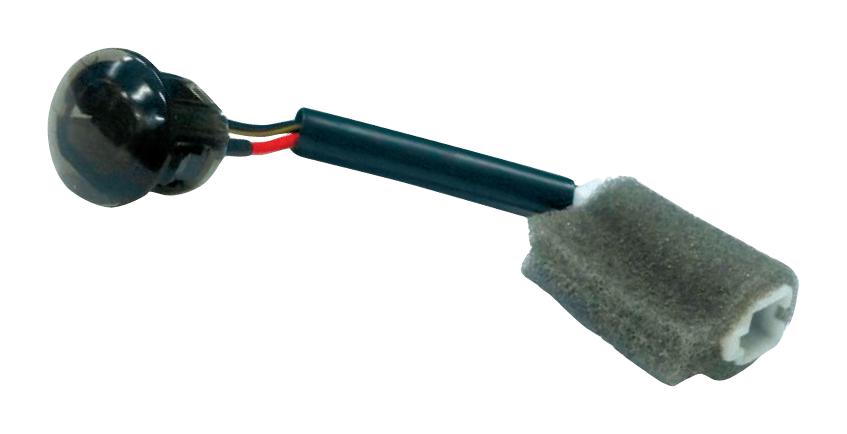

AMPHENOL ADVANCED SENSORS SUF083J001 Solar Sensor
The single solar sensor is mounted on the vehicle's dash panel near the front window. It uses a photodiode to measure solar radiation intensity and sends signals to the air conditioning system for automatic temperature adjustment. This sensor offers fast response, easy installation, a linear response to sunlight, and narrow signal tolerance. It operates in a temperature range of -30°C to 80°C and stores at -40°C to 85°C, with a typical output current of 0.5mA at 26,000 lux, making it ideal for vehicle climate control systems.
AMPHENOL ADVANCED SENSORS SUF083J001 Solar Sensor Specifications:
- Operating Temperature Range: -30°C to 80°C
- Storage Temperature Range: -40°C to 85°C
- Sensor Output Current: 0.5mA ±15% at 26,000 lux
- Light Measurement: 26,000 lux (standard A light source)
- Signal Response: Linear to sunlight intensity with narrow tolerance
- Wavelength Sensitivity: 400-1100 nm
- Physical Dimensions: Detailed dimensions not fully legible from OCR but designed for dash panel mounting
- Material: Not specified in OCR, typically durable automotive-grade materials
- Connector Type: 2-pin connector, KET MG 620490
- Application: Automatic vehicle air conditioning control based on solar radiation
Buy the Buy Amphenol Solar Sensor Part Number SUF083J001 Online
Purchase the Amphenol single solar sensor online today to improve your vehicle's air conditioning system with precise solar radiation detection. This sensor ensures quick response times and easy installation, making it ideal for automotive climate control applications. Its wide operating temperature range and accurate light measurement allow automatic temperature adjustments for driver comfort. Compatible with various automotive systems, this sensor provides reliable performance under different conditions. Order now to enhance your vehicle's automatic temperature regulation with high-quality, durable components designed for automotive environments.
Order your Amphenol SeriesSUF083J001 single solar sensor today and enhance your vehicle's climate control with fast, reliable solar radiation measurement.
