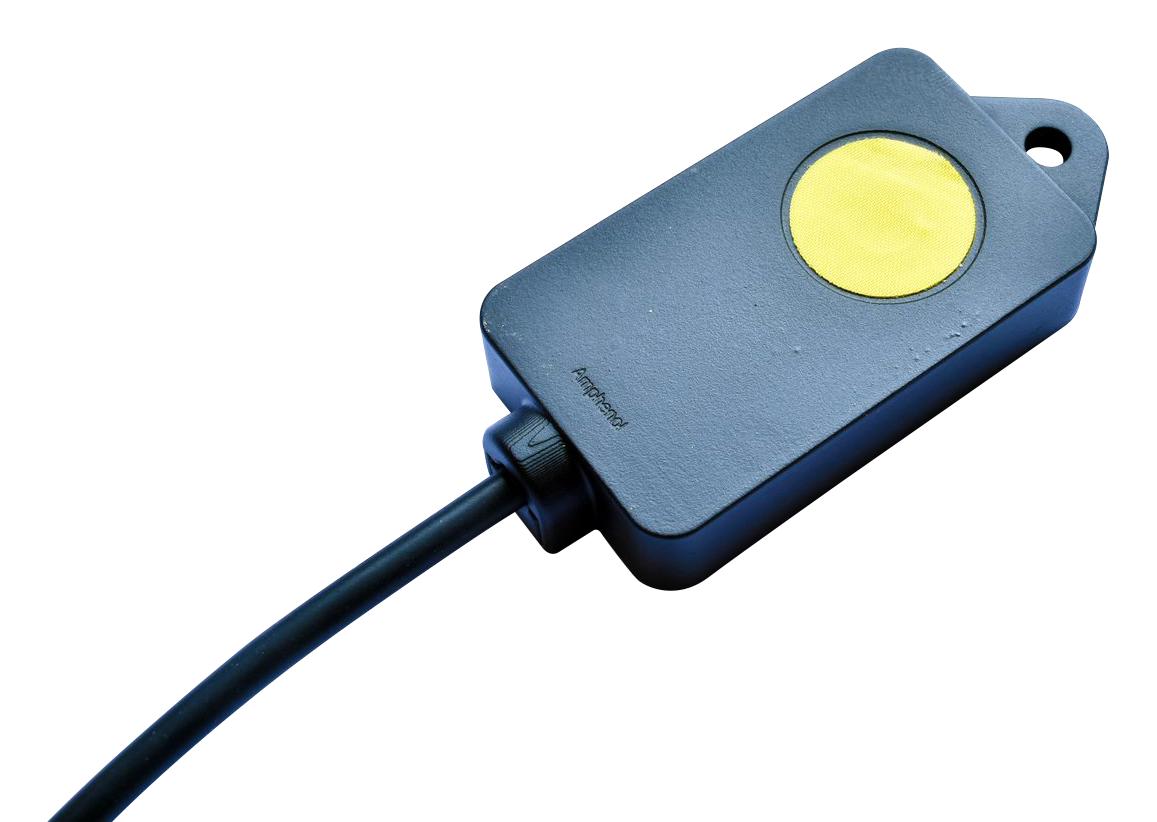

AMPHENOL ADVANCED SENSORS T302215K5 CO2 Sensor
The Telaire T3022 Series is an IP65-rated non-dispersive infrared (NDIR) CO2 sensor designed for OEM installation in environmental monitoring and HVAC control. It provides accurate measurements up to 5000 ppm with a fast response time of approximately 7 minutes. The sensor features a lifetime calibration warranty thanks to its patented ABC Logic self-calibration algorithm, eliminating the need for manual calibration in most applications. Its compact dimensions of 60mm x 35mm x 15mm and power requirements of 4.5-5.5 VDC make it easy to integrate into a variety of systems, ensuring reliable operation even in harsh environments.
AMPHENOL ADVANCED SENSORS T302215K5 CO2 Sensor Specifications:
- Method: Non Dispersive Infrared (NDIR), gold plated optics, diffusion or flow through sampling with ABC Logic software
- Measurement Range: 0 to 5000 ppm
- Overall Dimensions: 60mm x 35mm x 15mm (approx)
- Accuracy: 400-5000 ppm + 75 ppm or 10% of reading, whichever is greater
- Temperature Dependence: 0.2% FS per °C
- Stability: < 2% of FS over 15 years
- Pressure Dependence: 0.13% of reading per mm Hg
- Response Time: ~7 minutes
- Signal Update: Every 4 seconds
- Warm Up Time: <2 minutes operational, 10 minutes for max accuracy
- Operating Conditions: 32°F to 122°F (0°C to 50°C), 95% RH non-condensing
- Storage Conditions: -40°F to 158°F (-40°C to 70°C)
- Output: Digital (I2C)
- Protection: IP65
- Power Supply: 4.5-5.5 VDC, Peak 200mA, Average 25mA
- Pin Designations: V+, Ground, SDA, SCL
- Compliance: REACH, ROSH, Prop65
- Flammability: UL94 5VA
Buy the Amphenol T3022 – Reliable CO2 Sensor for Industrial Applications
Enhance your environmental monitoring systems with the reliable T3022 CO2 sensor. Designed for OEM use, it offers accurate measurements up to 5000 ppm, self-calibration with ABC Logic, an IP65 enclosure for durability, and low power consumption. Its compact size and digital output simplify integration into HVAC and control systems, ensuring consistent performance even in harsh environments. Purchase this high-precision sensor online today and improve your system’s accuracy and reliability with minimal maintenance.
Order your Amphenol Series T3022 CO2 sensor today and ensure accurate, reliable environmental monitoring for industrial applications and HVAC control.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS T302215K5?
You can click on the BUY or RFQ button to purchase T302215K5 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part T302215K5?
You can download the T302215K5 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of T302215K5?
AMPHENOL ADVANCED SENSORS
