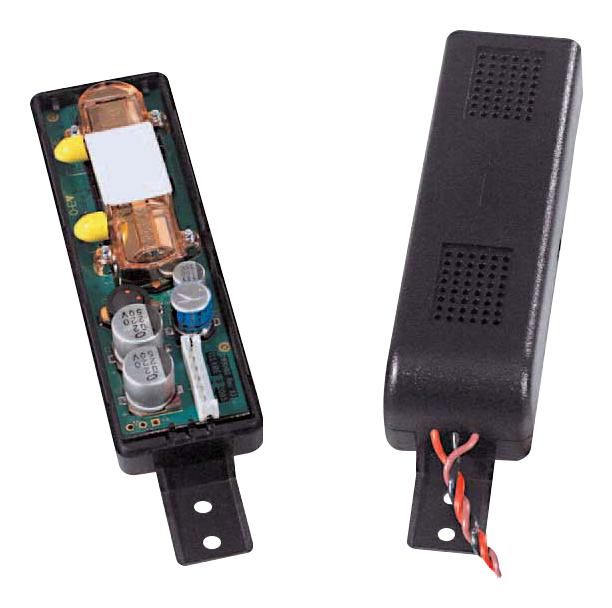

AMPHENOL ADVANCED SENSORS T80313M CO2 Duct Sensor
The Telaire Ventostat T8031 CO2 duct mount transmitter is a compact, high-accuracy sensor designed for HVAC applications. It features Telaire’s patented ABC Logic self-calibration technology, eliminating manual calibration needs, and offers a simple installation process with included mounting hardware. Its sleek design fits small ducts less than 6 inches in diameter, making it ideal for building air quality monitoring and demand-controlled ventilation. The sensor provides a 0-10 V analog output, has a measurement range of 0-2000 ppm, and is resistant to water and particulate contamination, ensuring long-term reliable performance.
AMPHENOL ADVANCED SENSORS T80313M CO2 Duct Sensor Specifications:
- Measurement Range: 0-2000 ppm
- Response Time: 3 minutes to 90% step change
- Calibration: Factory calibrated; ABC Logic™ self-calibration
- Output: 0-10 VDC, 100 ohm impedance
- Power Supply: 18-30 VAC RMS or 18-42 VDC
- Power Consumption: 1.65 W peak, 0.65 W average @ 42 VDC
- Temperature Range: 0°C to 50°C
- Humidity Range: 0-95%, non-condensing
- Dimensions: Length 3.83 in, Width 1.17 in, Height 0.94 in
- Enclosure: UL94V-5 flammability rating
- Certifications: RoHS, FCC Part 15,B, CE EMC EN61000-6-2
Buy the Buy Amphenol Advanced Sensors T8031 CO2 Sensor Part Number T80313M Online
Experience the convenience of purchasing the Amphenol Advanced Sensors T8031 CO2 duct transmitter online. Designed specifically for HVAC applications, this compact sensor provides precise measurements of CO2 levels from 0 to 2000 ppm, aiding demand-controlled ventilation and energy conservation. Its auto-calibration feature reduces maintenance, while its small size fits duct openings less than 6 inches in diameter. Easy to install, water-resistant, and certified under RoHS, this sensor guarantees reliable performance for over 10 years, ensuring optimal indoor air quality monitoring in commercial buildings.
Get Amphenol Advanced Sensors T8031 CO2 sensor today—compact, reliable, and ideal for HVAC air quality monitoring in small ducts.
