AMPHENOL ADVANCED SENSORS T80315V CO2 Duct Sensor

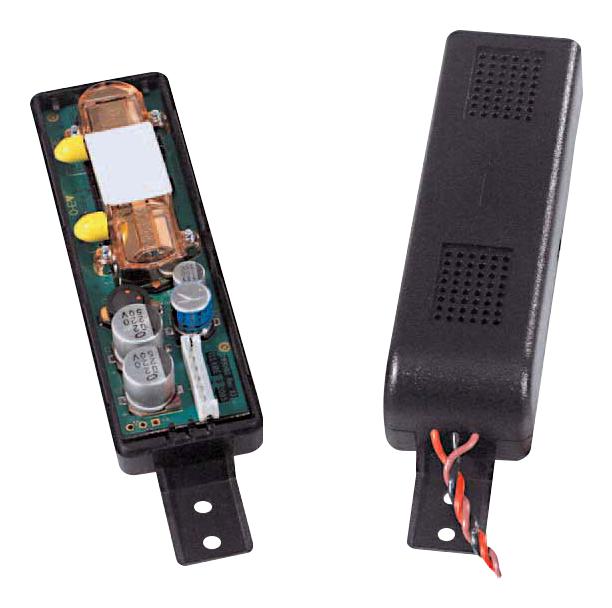

The Telaire Ventostat T8031 CO2 transmitter is designed for installation in HVAC return air ducts, offering high accuracy, small size, and ease of installation. It features Telaire’s patented ABC Logic self-calibration technology, eliminating manual calibration needs, and provides a 0-10 V output for easy integration. With a measurement range of 0-2000 ppm, it ensures reliable performance in indoor air quality monitoring and demand-controlled ventilation applications. Compact and water-resistant, it is ideal for small ducts and energy-efficient building management systems, guaranteeing long-term accuracy and minimal maintenance.
AMPHENOL ADVANCED SENSORS T80315V CO2 Duct Sensor Specifications:
- Measurement Range: 0-2000 ppm (factory calibrated)
- Input Power: 18VAC to 30VAC RMS or 18VDC to 42VDC
- Analog Output: 0-10 VDC, 100 ohm impedance
- Duct Air Velocity: 0 to 1500 ft/min (0-450 m/min)
- Response Time: 3 minutes for 90% step change
- Temperature Dependence: 0.2% of full scale per °C
- Accuracy: ±40 ppm +3% of reading at 22°C
- Non-linearity: <1% of full scale at 22°C
- Pressure Dependence: 0.13% per mmHg
- Operating Conditions: 0°C to 50°C, 0-95% RH non-condensing
- Storage Conditions: -20°C to 70°C
- Dimensions: Length 3.83 in, Width 1.17 in, Height 0.94 in
- Color: Black (UL94V-5 rated)
- Certifications: RoHS, FCC Part 15, CE EMC EN61000-6-2
- Enclosure: Fire-resistant UL94V-5
Buy the Buy Amphenol Advanced Sensors Telaire CO Transmitter Part Number T80315V Online
Purchase the Amphenol SeriesT8031 CO2 duct transmitter online today to ensure precise air quality monitoring in HVAC systems. Its compact size fits small ducts, and with patented self-calibration technology, it offers long-term accuracy and minimal maintenance. Suitable for demand-controlled ventilation, this device provides a 0-10 V analog output, is easy to install with included hardware, and is certified for safety standards. Optimize energy efficiency and indoor air quality management effortlessly with this reliable and cost-effective solution.
Order your Amphenol SeriesT8031 CO2 Transmitter today and enhance your indoor air quality monitoring with reliable, compact duct sensors.
