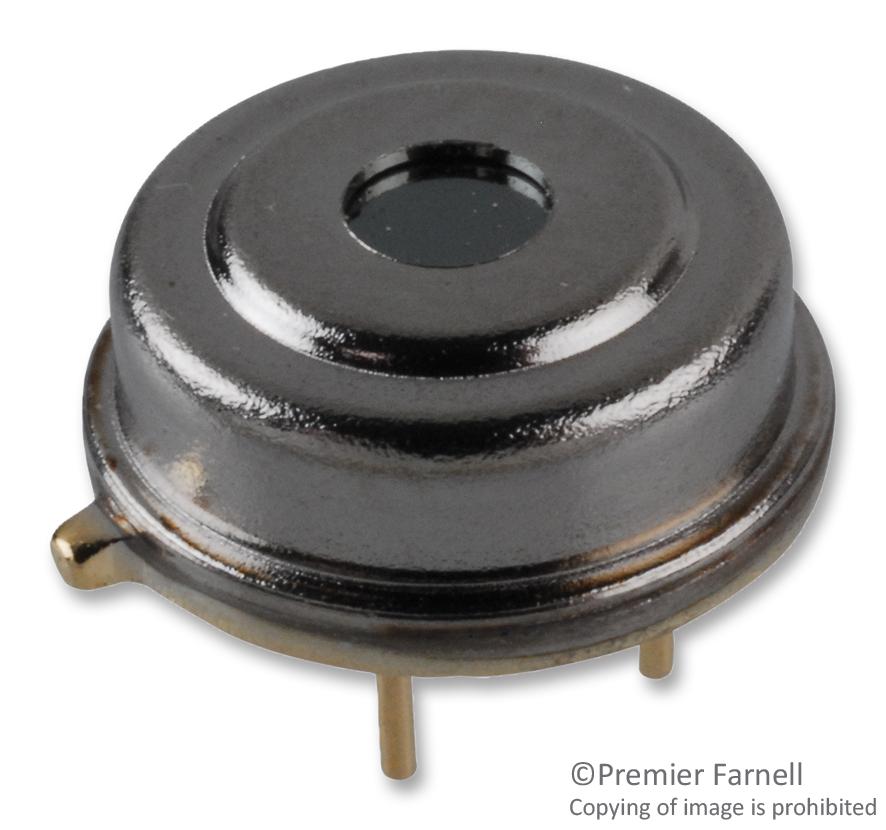

AMPHENOL ADVANCED SENSORS ZTP115 Infrared Temperature Sensor
The ZTP-115 is a compact, hermetically sealed thermopile infrared sensor designed for non-contact surface temperature measurement. It incorporates thermopiles, a flat IR filter, and an ambient temperature thermistor for precise compensation. This high-sensitivity sensor features fast response times and can measure larger surface areas effectively. Suitable for medical, HVAC, and sensing applications, it offers customizable filters to enhance performance under various conditions, providing accurate and reliable temperature readings in a small, robust package suitable for diverse industrial uses.
AMPHENOL ADVANCED SENSORS ZTP115 Infrared Temperature Sensor Specifications:
- Chip Size: 18x18 mm
- Diaphragm Size: 10x10 mm
- Active Area: 05x05 mm
- Resistance at 25°C: 50 kΩ (typical)
- Resistance Temperature Coefficient: 3.85%/°C
- Beta-Value: 3930 K (typical)
- Temperature Range Operating: -20°C to +100°C
- Storage Temperature: -40°C to +120°C
- Lead Lengths: Variable (3.0, 6.7, 13.2 mm ±0.5 mm)
- Spectral Response: Sensitive to IR wavelength, with filters available for specific applications
- Field of View: 50°, 55°, 60° (adjustable)
- Sensor Packaging: Small hermetically sealed package
- Includes thermistor for ambient temperature compensation
- RoHS compliant, designed for various industrial applications
Buy the Amphenol ZTP-115 – Reliable IR Sensor for Industrial Applications
Discover the highly sensitive and fast-response infrared temperature sensor designed for precise non-contact surface temperature measurement. The compact ZTP-115 features a hermetically sealed package, thermopiles, and an ambient thermistor for accurate temperature compensation. It is ideal for a broad range of applications including medical devices, HVAC systems, and industrial sensing. Customize the sensor with various filters to optimize performance for specific needs. Buy online now to ensure reliable temperature sensing with a robust and easy-to-integrate IR sensor solution designed for diverse industrial environments.
Get Amphenol ZTP-115 today—built for precise non-contact temperature sensing in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS ZTP115?
You can click on the BUY or RFQ button to purchase ZTP115 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part ZTP115?
You can download the ZTP115 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of ZTP115?
AMPHENOL ADVANCED SENSORS
