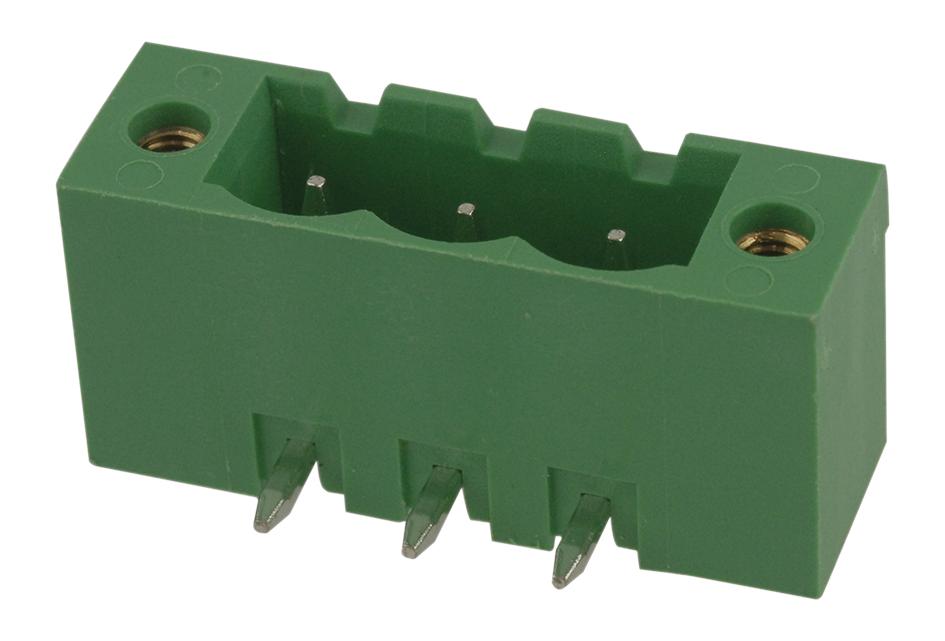

AMPHENOL ANYTEK 20020111H031A01LF Terminal Block Socket
The FCI part number 20020111-H031A01LF is a right-angled pluggable terminal block socket designed for through-hole mounting. It features a 5.08mm pitch spacing, comprises three poles, and comes with a green thermoplastic housing. The terminal is made of copper alloy with tin plating, ensuring reliable electrical connections. This connector has a UL94 V-0 flammability rating and operates within a temperature range of -40°C to 115°C. It is cULus certified, rated for 300VAC voltage and 12A current, making it suitable for industrial applications.
AMPHENOL ANYTEK 20020111H031A01LF Terminal Block Socket Specifications:
- Pitch: 5.08 mm
- Poles: 3
- Housing Material: Thermoplastic resin, UL 94V-0 rated
- Terminal Material: Copper alloy, tin plated
- Voltage Rating: 300 VAC
- Current Rating: 12 A
- Operating Temperature: -40°C to +115°C
- Flammability: UL 94V-0
- Mounting: Through-hole
- Color: Green
Buy the FCI Series Terminals 5.08mm Pitch: 20020111
Order the FCI terminal block socket online today and enjoy fast delivery and secure purchase. Designed for industrial applications, this 3-pole connector with a 5.08mm pitch offers excellent electrical performance and thermal stability. Made with durable thermoplastic housing and corrosion-resistant tin-plated copper alloy terminals, it supports a voltage of 300VAC and a current of 12A. Operating from -40°C to 115°C, it's UL94 V-0 rated, ensuring safety and compliance for your manufacturing or maintenance needs.
Buy FCI 20020111-H031A01LF now and experience unmatched reliability and performance in industrial terminal connections.
Frequently Asked Questions
Where can I buy AMPHENOL ANYTEK 20020111H031A01LF?
You can click on the BUY or RFQ button to purchase 20020111H031A01LF from an authorized AMPHENOL ANYTEK distributor.
How do I troubleshoot issues or seek technical support for part 20020111H031A01LF?
You can download the 20020111H031A01LF datasheet or visit the AMPHENOL ANYTEK website for support.
Who is the manufacturer of 20020111H031A01LF?
AMPHENOL ANYTEK
