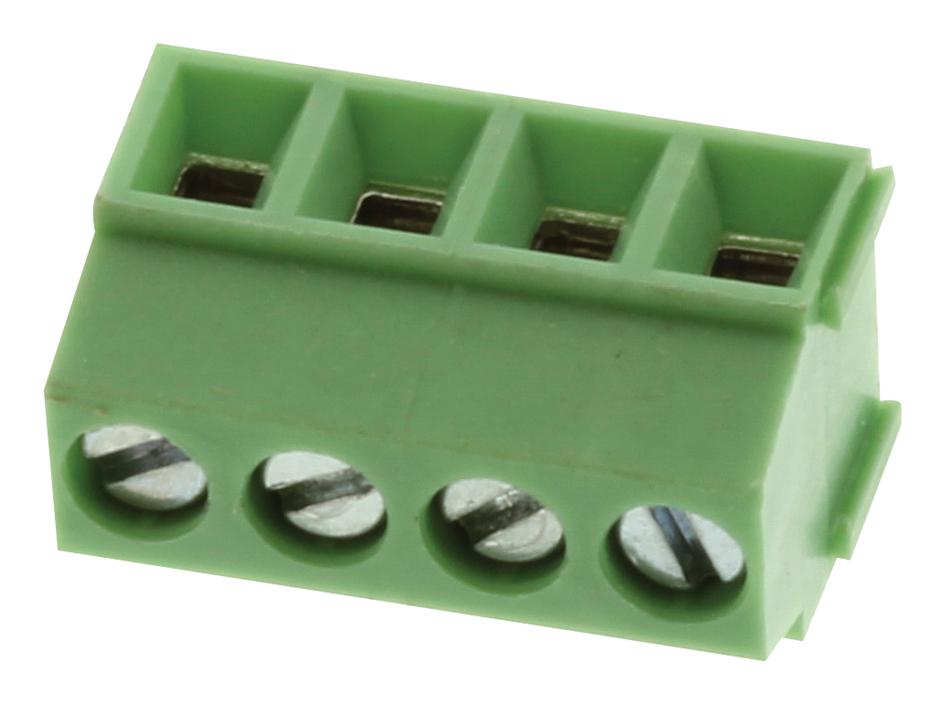

AMPHENOL ANYTEK 20020327C041B01LF Terminal Block
The 20020327-C041B01LF is a 4-way, 3.5mm pitch horizontal pluggable terminal block designed for industrial automation and electrical wiring. It features tin-plated copper alloy terminals, a durable green thermoplastic housing rated UL94V-0, zinc-plated steel screws, and nickel-plated copper clamps for reliable connections. Capable of withstanding 200 mating cycles, it operates safely between -40°C and 115°C, ensuring high performance in challenging environments. Suitable for PCB mounting, this terminal block offers robust construction and compliance with safety standards, making it ideal for complex electrical systems.
AMPHENOL ANYTEK 20020327C041B01LF Terminal Block Specifications:
- Number of poles: 4
- Pitch: 3.50 mm
- Voltage Rating: 300 VAC
- Current Rating: 10 A
- Applicable wire range: 16-24 AWG
- Wire cross section: 0.5 mm² to 1.0 mm²
- Housing material: Thermoplastic, UL94V-0 rated, green color
- Terminal material: Copper alloy, tin-plated
- Housing dimensions: N x 3.5 mm (A), (N-1) x 3.5 mm (B)
- Wire entry dimensions: 1.6 x 1.6 mm
- Wire strip length: 5-6 mm
- Operating temperature: -40°C to +115°C
- Flammability rating: UL94V-0
- Number of mating cycles: Up to 200
- Screw material: Zinc-plated steel
- Coating: Nickel-plated clamp for secure connection
Buy the FCI Series 26-350 3.50 mm Horizontal Terminal Block: 20020327C041B01LF
Choose the FCI terminal block for superior electrical connections in industrial environments. This 4-way, 3.5mm pitch, pluggable terminal block features durable copper alloy terminals with tin plating, a UL94V-0 rated plastic housing, and zinc-plated steel screws. It withstands -40°C to 115°C temperature range, offers high cycle durability of 200 mating cycles, and ensures safety and reliability in complex systems. Perfect for PCB mounting in automation, it guarantees secure connections and compliance with international safety standards. Purchase online today and enhance your electrical setup with high-quality components.
Buy FCI 20020327C041B01LF now and experience unmatched reliability and performance in industrial wiring and automation projects.
Frequently Asked Questions
Where can I buy AMPHENOL ANYTEK 20020327C041B01LF?
You can click on the BUY or RFQ button to purchase 20020327C041B01LF from an authorized AMPHENOL ANYTEK distributor.
How do I troubleshoot issues or seek technical support for part 20020327C041B01LF?
You can download the 20020327C041B01LF datasheet or visit the AMPHENOL ANYTEK website for support.
Who is the manufacturer of 20020327C041B01LF?
AMPHENOL ANYTEK
