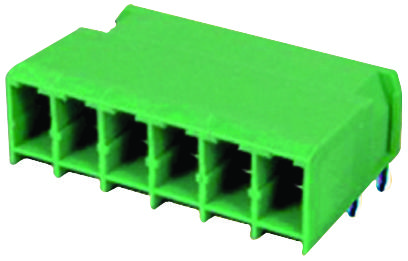

AMPHENOL ANYTEK 20020618M041A01LF Terminal Block
This terminal block series features 2 to 16 poles with a pitch of 7.62 mm, suitable for various wiring and connection applications. Made from thermal plastic resin housing rated UL 94V-0 and tin-plated copper alloy terminals, these products support a voltage of 300 VAC, a current of 32 A, and withstand 1.6 kV. Operating temperatures range from -40°C to +115°C, with a recommended soldering temp of 250°C for 5 seconds. Packaged in boxes with safety certifications, their versatile color options include green, gray, blue, and black on request, ensuring compliance with EU directives and safety standards.
AMPHENOL ANYTEK 20020618M041A01LF Terminal Block Specifications:
- Number of Poles: 2 to 16
- Pitch: 7.62 mm
- Housing Material: Thermal plastic resin, UL 94V-0 rated
- Terminal Material: Copper alloy, tin-plated
- Voltage Rating: 300 VAC
- Current Rating: 32 A
- Withstanding Voltage: 1.6 kV
- Operating Temperature: -40°C to +115°C
- Soldering Temperature: 250°C for 5 sec.
- Color Options: Green (RAL 6018), Gray (RAL 7004), Blue (RAL 5015), Black (on request)
- Packaging: Boxed packaging
- Certification: RoHS, safety certificates compliant with EU directives
Buy the FCI Series Terminal Block: 07-762 7.62 mm: 20020618M041A01LF
Order the FCI series terminal block with 2 to 16 poles and a 7.62 mm pitch online today. Featuring UL-rated thermoplastic housing, copper alloy tin-plated terminals, and supporting 300 VAC at 32 A, these terminal blocks are ideal for industrial wiring. Operate reliably from -40°C to +115°C, with certified safety standards and RoHS compliance. Available in various colors, including green, gray, and blue, they come in boxed packaging and are recommended for wave soldering. Ensure secure, durable connections with this versatile product.
Buy FCI 20020618M041A01LF terminal block now and experience unmatched reliability and performance in your wiring and connection projects.
Frequently Asked Questions
Where can I buy AMPHENOL ANYTEK 20020618M041A01LF?
You can click on the BUY or RFQ button to purchase 20020618M041A01LF from an authorized AMPHENOL ANYTEK distributor.
How do I troubleshoot issues or seek technical support for part 20020618M041A01LF?
You can download the 20020618M041A01LF datasheet or visit the AMPHENOL ANYTEK website for support.
Who is the manufacturer of 20020618M041A01LF?
AMPHENOL ANYTEK
