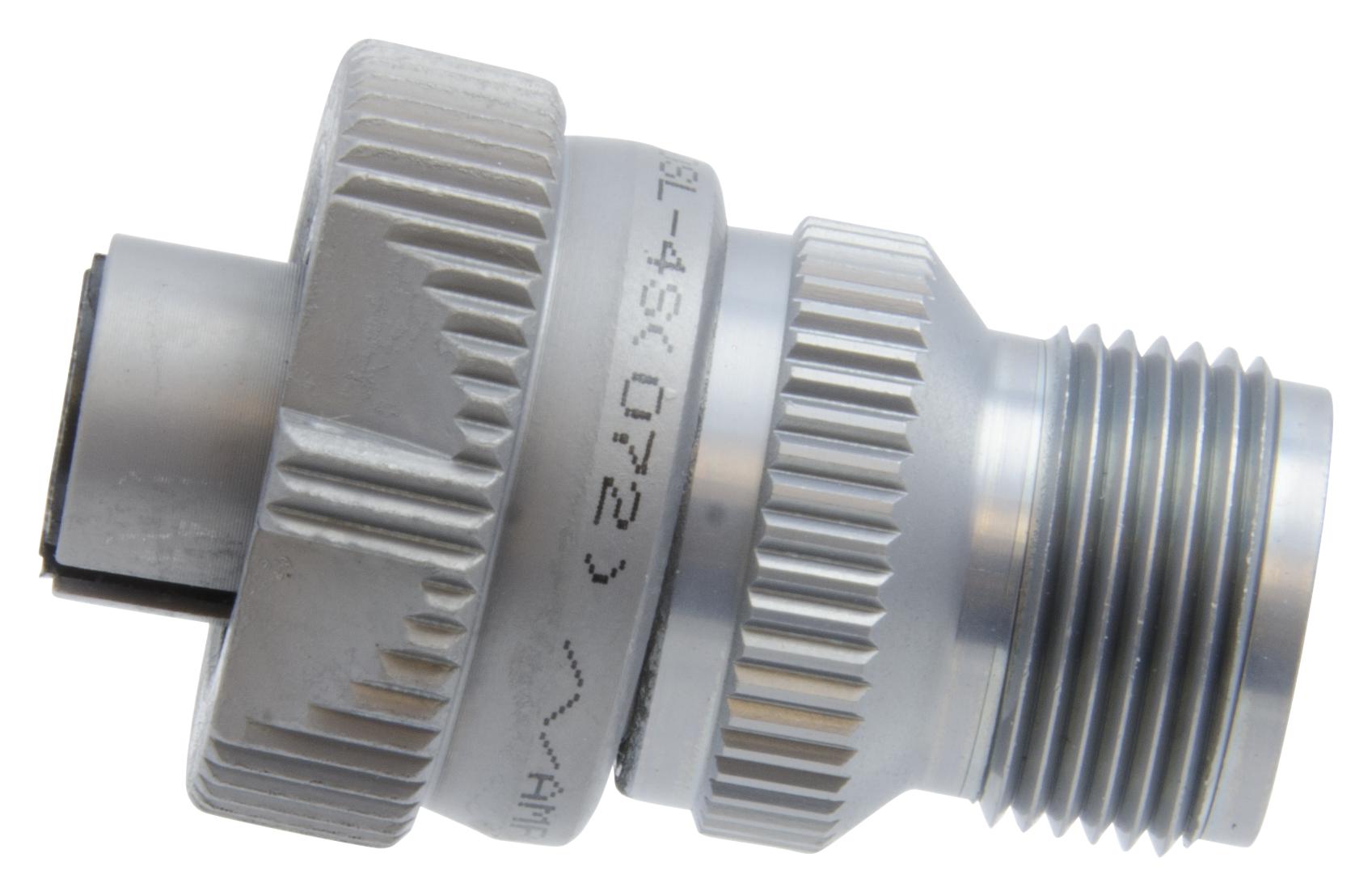

AMPHENOL INDUSTRIAL ACS06PGA14S5P072 Industrial Connector
The product is a versatile industrial connector series designed for heavy-duty applications, featuring durable aluminum shells, corrosion-resistant contacts, and environmental sealing options. Suitable for power, signal, and thermocouple connections, it offers a range of shell styles, sizes, and contact arrangements. The connectors support crimp or solder terminations, operate in extreme temperatures from -55°C to +125°C, and include features like key/keyway polarization and optional hermetic configurations. Compatibility with RADSOK high amperage contacts enhances its performance in demanding environments such as transportation, military, and industrial sectors.
AMPHENOL INDUSTRIAL ACS06PGA14S5P072 Industrial Connector Specifications:
- Shell Material: Aluminum alloy
- Operating Temperature Range: -55°C to +125°C
- Shell Styles: Wall mounting, line, box mounting, straight and 90° plugs
- Shell Sizes: 19 sizes from 10SL to 40
- Contact Types: Solder, crimp, RADSOK high amperage options
- Voltage Rating: Up to 3000 VAC (RMS) at sea level
- Environmental Resistance: Moisture, vibration, pressure resistant
- Insert Material: Neoprene, optional materials available
- Key/Keyway Shell Polarization: Yes
- Thread Standard: SAE AS50151 threaded couplings
- Temperature Tolerance: -55°C to +125°C (standard), some variants up to +200°C
- Amperage Capacity: Sizes 12 (35A), 8 (70A), 4 (120A), 0 (250A), with RADSOK options
- Certifications: SAE AS50151, RoHS compliant options
- Application: Military, aerospace, industrial, heavy equipment, transportation
- Finish Options: Cadmium plating, black zinc alloy, gold, nickel, standoffs, hermetic seals
Buy the Buy Amphenol SAE AS50151 Connectors Part Number ACS06PGA14S5P072 Online
Purchase the Amphenol industrial connector series online now for reliable power and signal solutions in demanding environments. Featuring diverse shell styles and sizes, with options for solder or crimp contacts and high amperage RADSOK technology, these connectors are ideal for military, aerospace, and heavy-duty industrial applications. Their robust aluminum shells, environmental sealing, and temperature resilience from -55°C to +125°C ensure maximum durability and performance. Easy to install, field-repairable, and RoHS compliant, they provide the perfect solution for critical power and communication needs in extreme conditions.
Get Amphenol ACS06PGA14S5P072 today—built for rugged industrial use, high amperage capabilities, and extreme environmental resistance.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ACS06PGA14S5P072?
You can click on the BUY or RFQ button to purchase ACS06PGA14S5P072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ACS06PGA14S5P072?
You can download the ACS06PGA14S5P072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ACS06PGA14S5P072?
AMPHENOL INDUSTRIAL
