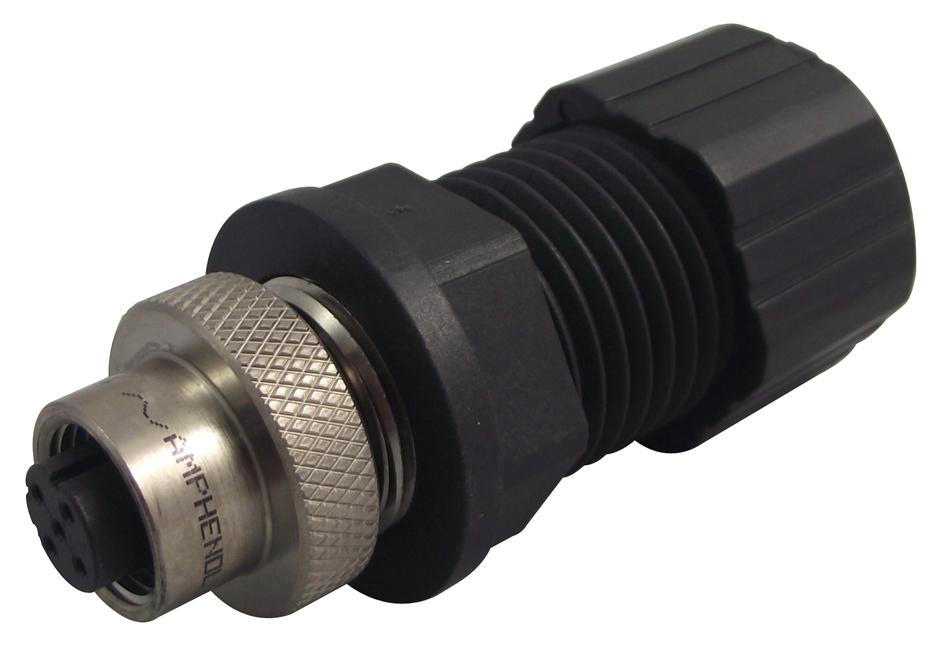

AMPHENOL INDUSTRIAL HDM12PF05D1ST High-Speed Data Connector

The Max-M12 series high-speed data connector is designed for rugged and demanding environments, offering enhanced durability and environmental resistance. Compliant with IEC 61076-2-101 and SAE J2839 standards, it is suitable for heavy-duty applications such as heavy equipment, rail, and mass transit systems. Available in plastic or metal (for shielding), the connector features 90° right-angle and straight options, with 3-, 4-, and 5-way circuit patterns. It supports solder terminals for wire connections and pin terminals for PCB mounting, offered as both standalone connectors and cable assemblies (standard and over-moulded). The design is backward compatible with IEC standards, resistant to terminal damage, and engineered for extreme environmental conditions, including high-pressure wash downs. It includes provisions for cable shielding and drain wires, has a maximum current rating of 4A, dielectric withstand voltage of 1000V, and insulation resistance greater than 20 megaohms. The connector offers IP67 or higher protection, making it ideal for automation, building automation, commercial, and logistics applications.

View HDM12PF05D1STDatasheet [pdf]

Buy the Amphenol Series Max-M12 High-Speed Data Connector: HDM12PF05D1ST

Purchase the high-performance Max-M12 series connector online today and enjoy guaranteed durability, environmental resistance, and fast delivery. This versatile connector supports both PCB and cable assemblies, making it suitable for automation, heavy machinery, rail systems, and industrial automation projects. Its IP67 rating and high dielectric withstand voltage ensure reliable performance in tough environments. Easy to install with options for right-angle and straight configurations, the Max-M12 connector guarantees stable electrical connections, longevity, and compliance with international safety standards. Secure your systems with this trusted, high-quality connector now.

Order your Amphenol Series Max-M12 HDM12PF05D1ST high-speed data connector today and ensure reliable, durable connections in demanding industrial environments.
