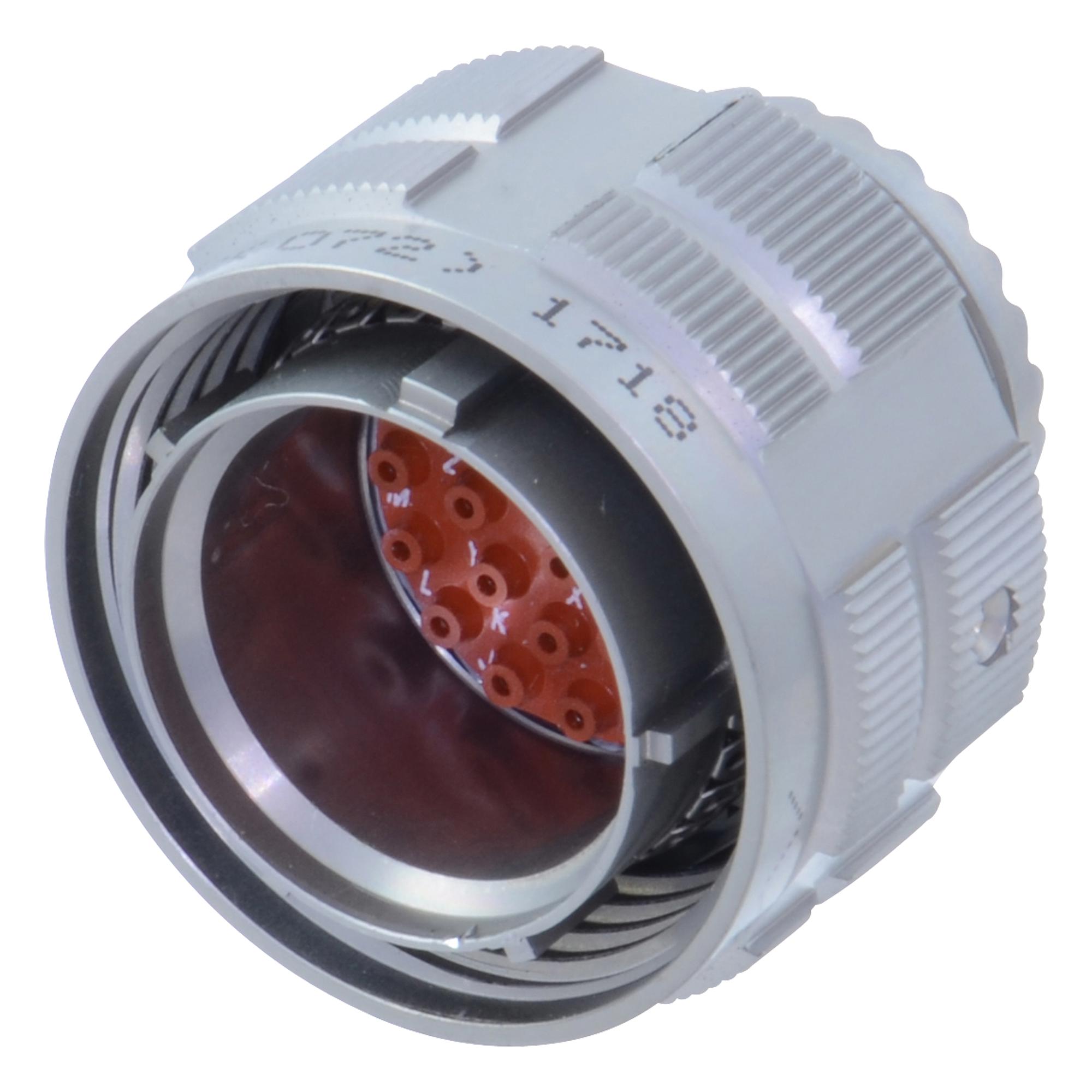

AMPHENOL INDUSTRIAL ALM06FD1535P072 high-performance circular connector
Amphenol's Amphe-Lite M3 compact circular connector series is designed for harsh environments, offering high vibration resistance, scoop-proof shells, and corrosion protection with Gray ZnNi plating. The connectors feature quick-mating bayonet coupling, superior silicone seals for fluid resistance, and 17 insert patterns rated to IP67 when mated. They utilize durable dielectrics and removable crimp contacts, suitable for control systems, aerospace, telecommunications, medical devices, and high-performance testing, providing reliable electrical connections in demanding industrial applications.
AMPHENOL INDUSTRIAL ALM06FD1535P072 high-performance circular connector Specifications:
- Operating Temperature: -65°C to +125°C
- Relative Humidity: Up to 98% at 40°C
- Mating Life: Minimum 500 cycles
- Insulation Resistance: > 100 MΩ in humid conditions
- Salt Spray Resistance: Gray Zinc Nickel plating 500 hours
- Vibration Resistance: Sine and random vibration standards compliant
- Shock Resistance: Peak acceleration 300g for 3ms
- Contact Sizes: 22D, 20, 16, 12 with respective diameters 0.76 mm, 1.00 mm, 16 mm, 2.40 mm
- Shell Sizes: 09, 11, 13, 15, 17, 19, 21, 23, 25
- Coupling Mechanism: Bayonet with Acme threads for durability
- Insertion/Extraction: Compatible with crimp and PCB contacts, removable
- Sealing: Silicone seals for fluid resistance, IP67 rated when mated
- Inserts: 17 patterns, rated to MIL-STD-38999 Series III
- Materials: Dielectric insulators, stainless steel contact shrouds, silicone rubber seals
- Certifications: RoHS, MIL-STD-1344A F Class chemical resistance
Buy the Amphenol Series M3 Circular Connector: ALM06FD1535P072
Purchase the Amphenol Series M3 connector ALM06FD1535P072 online today and enjoy a highly reliable, durable interconnect solution ideal for control systems, aerospace, and telecommunications. Featuring scoop-proof shells, quick-mating bayonet coupling, and excellent corrosion resistance with Gray ZnNi plating, this connector withstands severe environmental conditions. Its IP67-rated sealing, multiple insert patterns, and crimp or PCB contacts make it versatile for high-vibration, high-temperature, and fluid-resistant applications. Get fast delivery and superior performance for your critical projects.
Order your Amphenol Series M3 connector ALM06FD1535P072 today and ensure your industrial and aerospace projects benefit from reliable, high-performance interconnects designed for harsh environments.
